SEM 1 CF4 C

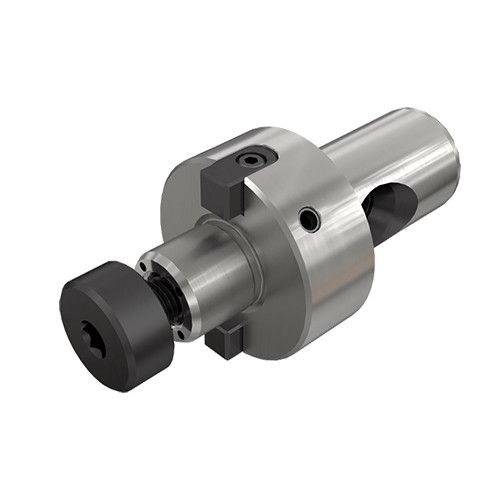

DIN 3937 shell mill holder with a CLICKFIT quick change adaptation and coolant holes.

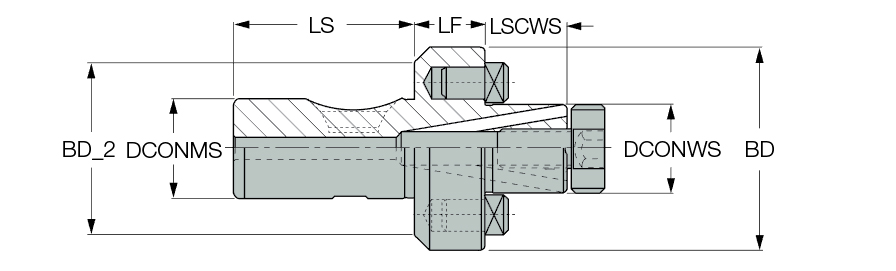

| Protruding Length (LPR) | 1″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.984″ | Body Material | Steel |
| Body Diameter (BD) | 2.126″ | Body Diameter_2 (BD_2) | 1.732″ |
| Shank Size (SS) | CF4 | Overall Length (OAL) | 3.319″ |
| Tool Type | Quick Change Milling Adaptation | Unit | I |
Product Features
| Family Description | DIN 3937 shell mill holder with a CLICKFIT quick change adaptation and coolant holes. | FamilyName | SEM CF (CLICK-FIT) |
| Remarks | Tightening torque: 44 Lbs x ft. For Adaptation Click on More Info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.5741
Name
Adapters
FamilyName
SEM CF (CLICK-FIT)
BrandName
Iscar
