C8 AD HSK A100WHX120
CAMFIX (ISO 26623-1) holders with HSK ISO 12164-3 form A Tapered shanks.

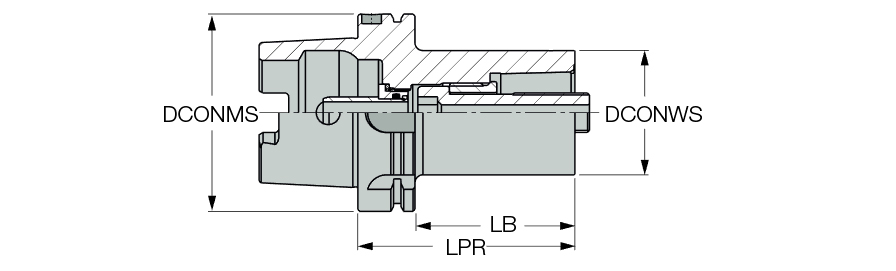

| Protruding Length (LPR) | 120 mm | Tool Type | HSK |
| Connection Diameter Machine Side (DCONMS) | 100 mm | Measurement Type | Metric |
| Connection Diameter Workpiece Side (DCONWS) | 80 mm | Body Material | Steel |
| Body Length (LB) | 91 mm | Connection Code Machine Side (CCMS) | HSK |
| Shank Size (SS) | 100 | Unit | M |
Product Features
| Family Description | CAMFIX (ISO 26623-1) holders with HSK ISO 12164-3 form A Tapered shanks. | FamilyName | HSK-C# |
| Remarks | Note: To enable clamping the part to be attached, first remove the cooling tube | BrandName | Iscar |
| COO | Italy |
Shipping Info
Weight per item
5.1280
Name
Adapters
FamilyName
HSK-C#
BrandName
Iscar
