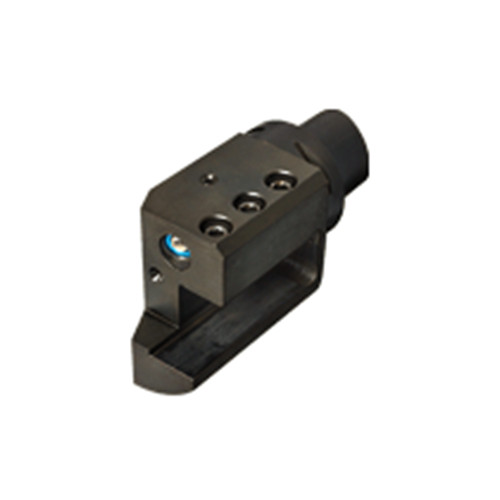

C8 ASHR 32-1
Holders with CAMFIX (ISO 26623-1 standard) exchangeable shanks for external square shank tools.

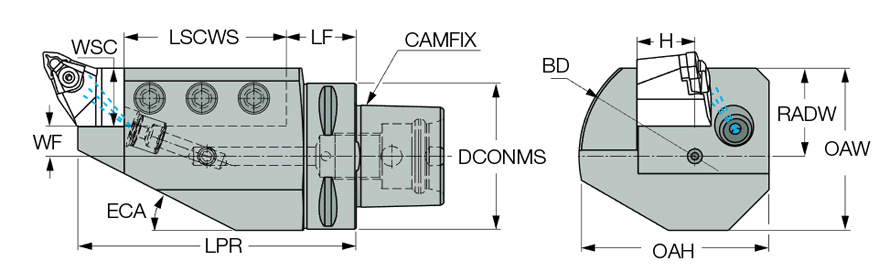

| Protruding Length (LPR) | 140 mm | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Connection Diameter Machine Side (DCONMS) | 80 mm | Measurement Type | Metric |
| Shank Width (B) | 32 mm | Body Material | Steel |
| Body Diameter (BD) | 110 mm | Overall Height (OAH) | 87 mm |
| Body Length (LB) | 40 mm | Overall Length (OAL) | 188 mm |
| Functional Width (WF) | 8 mm | Unit | M |
| Shank Size (SS) | 80 | Overall Width (OAW) | 80 mm |
Product Features
| Family Description | Holders with CAMFIX (ISO 26623-1 standard) exchangeable shanks for external square shank tools. | FamilyName | C#-ASHR/L |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
5.7150
Name
Adapters
FamilyName
C#-ASHR/L
BrandName
Iscar
