HSK A63WH ASHR 25 45
Square shank tool adapters with HSK-T exchangeable shanks for 45° mounting on turn-mill machines.

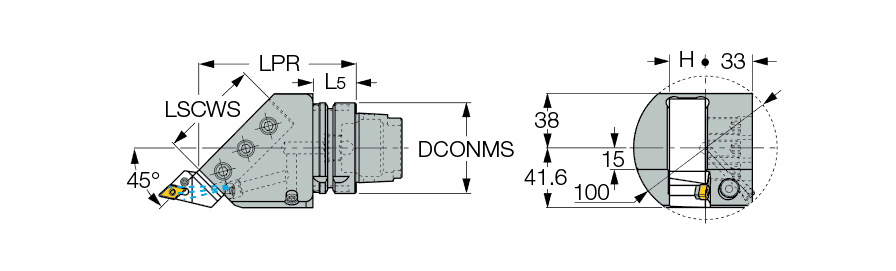

| Protruding Length (LPR) | 110 mm | Tool Type | HSK -T (ISO 12164-3) |
| Connection Diameter Machine Side (DCONMS) | 63 mm | Measurement Type | Metric |
| Shank Height (H) | 25 mm | Body Material | Steel |
| Body Length (LB) | 30 mm | Overall Length (OAL) | 142 mm |
| Shank Size (SS) | 63 | Unit | M |
Product Features
| Family Description | Square shank tool adapters with HSK-T exchangeable shanks for 45° mounting on turn-mill machines. | FamilyName | HSK A63WH-ASHR/L-45 |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (should be ordered separately) Complies with ICTM standard (ISO 12164-3) For shank dimensions, click on More Info | BrandName | Iscar |
| COO | Italy |
Shipping Info
Weight per item
3.2490
Name
Adapters
FamilyName
HSK A63WH-ASHR/L-45
BrandName
Iscar
