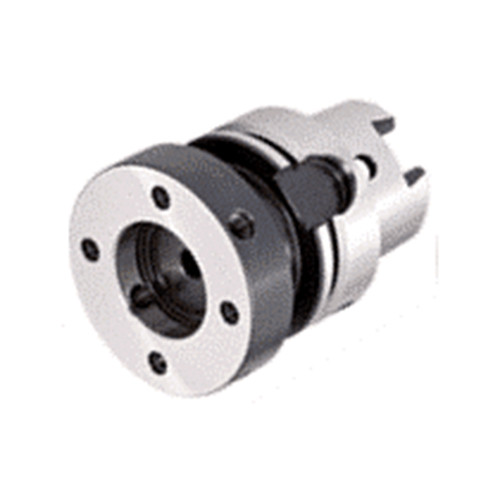

ADJ HSK A100 D70
Center alignment shank and base with a DIN69893 form A HSK tapered shank for specially tailored tool holders.

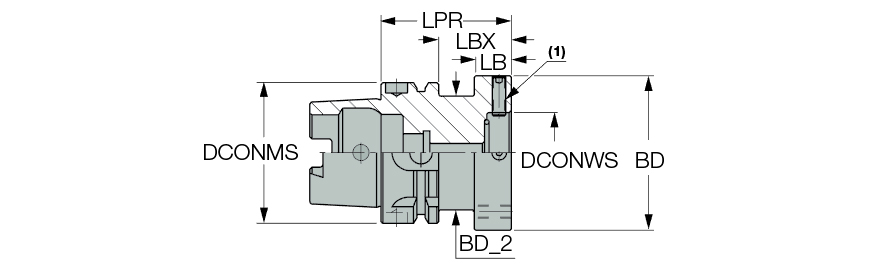

| Protruding Length (LPR) | 55 mm | Tool Type | HSK |
| Connection Diameter Machine Side (DCONMS) | 100 mm | Measurement Type | Metric |
| Connection Diameter Workpiece Side (DCONWS) | 35 mm | Body Material | Steel |
| Body Diameter (BD) | 70 mm | Overall Length (OAL) | 105 mm |
| Body Length (LB) | 26 mm | Connection Code Machine Side (CCMS) | HSK |
| Shank Size (SS) | 100 | Unit | M |
Product Features
| Family Description | Center alignment shank and base with a DIN69893 form A HSK tapered shank for specially tailored tool holders. | FamilyName | ADJ HSK A |

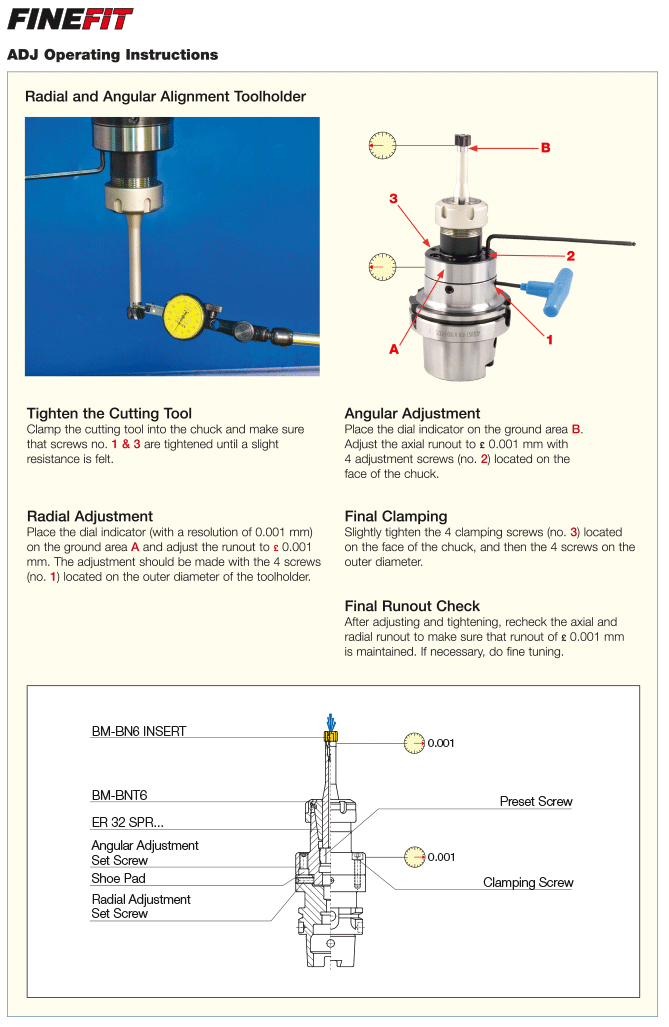

| Remarks | (1) Use 4 mm hex key for screw adjustment. A cooling tube must be used with all coolant through HSK spindles (to be ordered separately) For shank dimensions, Click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
2.8160
Name
Adapters
FamilyName
ADJ HSK A
BrandName
Iscar
