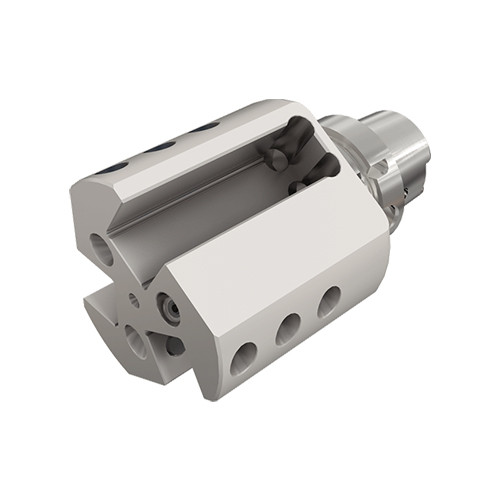

HSK A63WH ASHL 25 3
Triple square shank tool adapters with HSK exchangeable shanks for mounting on turn-mill machines.

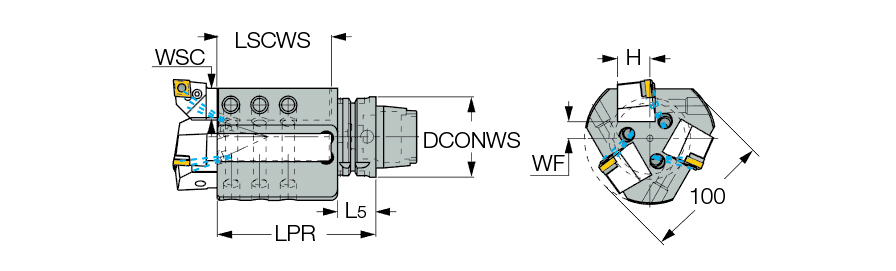

| Protruding Length (LPR) | 125 mm | Shank Size (SS) | 63 |
| Connection Diameter Machine Side (DCONMS) | 63 mm | Tool Type | HSK -T (ISO 12164-3) |
| Shank Width (B) | 25 mm | Measurement Type | Metric |
| Shank Height (H) | 25 mm | Body Material | Steel |
| Body Length (LB) | 30 mm | Overall Length (OAL) | 157 mm |
| Functional Width (WF) | 0 mm | Unit | M |
Product Features
| Family Description | Triple square shank tool adapters with HSK exchangeable shanks for mounting on turn-mill machines. | FamilyName | HSK A63WH-ASHR/L-3 |
| Remarks | Complies with ICTM standard (ISO 12164-3) A cooling tube must be used with all coolant through HSK spindles (should be ordered separately) For shank dimensions, click on More Info | BrandName | Iscar |
| COO | Italy |
Shipping Info
Weight per item
3.8080
Name
Adapters
FamilyName
HSK A63WH-ASHR/L-3
BrandName
Iscar
