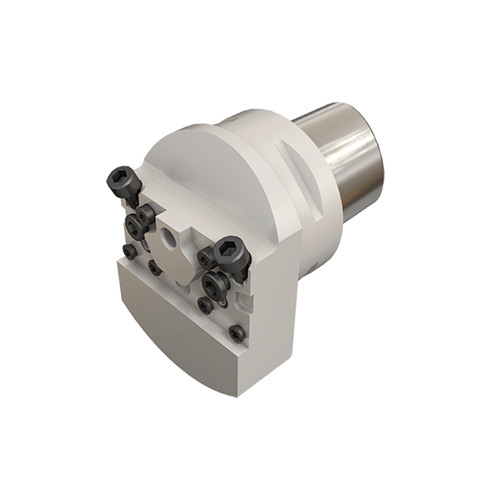

C5 MAHPD-JHP
Perpendicular holders with CAMFIX (ISO 26623-1 standard) exchangeable tapered shanks and high pressure coolant holes, carrying MODULAR-GRIP adapters for parting, grooving, turning and facing.

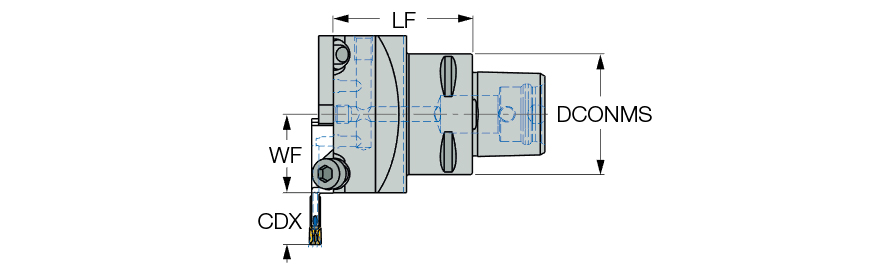

| Protruding Length (LPR) | 46 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 50 mm | Body Material | Steel |
| Functional Width (WF) | 0 mm | Overall Length (OAL) | 80.9 mm |
| Shank Size (SS) | 50 | Unit | M |
| Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
Product Features
| Family Description | Perpendicular holders with CAMFIX (ISO 26623-1 standard) exchangeable tapered shanks and high pressure coolant holes, carrying MODULAR-GRIP adapters for parting, grooving, turning and facing. | FamilyName | C#-MAHPD-JHP |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
1.1350
Name
Adapters
FamilyName
C#-MAHPD-JHP
BrandName
Iscar
