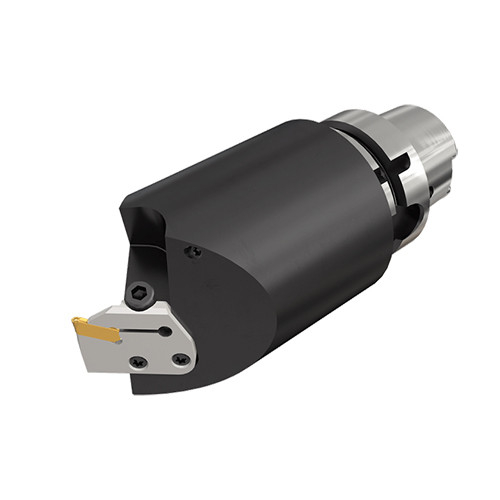

HSK A63WH MAHDR 45
Holders with HSK tapered shanks for MODULAR-GRIP, parting, grooving and facing adapters for 45° mounting on turn-mill machines.

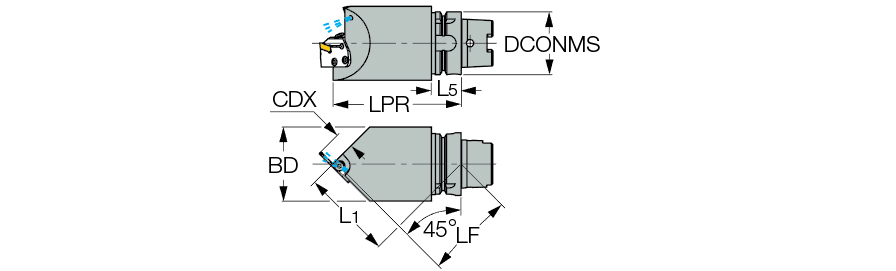

| Protruding Length (LPR) | 130 mm | Tool Type | HSK -T (ISO 12164-3) |
| Connection Diameter Machine Side (DCONMS) | 63 mm | Measurement Type | Metric |
| Body Diameter (BD) | 75 mm | Body Material | Steel |
| Body Length (LB) | 30 mm | Overall Length (OAL) | 162 mm |
| Shank Size (SS) | 63 | Unit | M |
Product Features
| Family Description | Holders with HSK tapered shanks for MODULAR-GRIP, parting, grooving and facing adapters for 45° mounting on turn-mill machines. | FamilyName | HSK A63WH-MAHDR-45 |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (should be ordered separately) Complies with ICTM standard (ISO 12164-3) For shank dimensions, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
3.6700
Name
Adapters
FamilyName
HSK A63WH-MAHDR-45
BrandName
Iscar
Related Documentation
SR14-519-supplied screw in the attached plastic bag for GAD, GAM, DGAD, HGAD and PCADR/L adapters. SR M6X20-XT-supplied screws with the tools in the plastic bag for CGPAD, HGPAD, TGPAD and FGPAD adapters. Sealing Screw used to prevent chips from entering the upper locking screw hole of adapter above.
