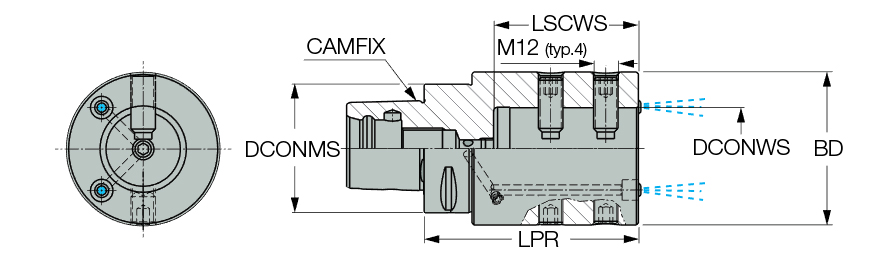

| Protruding Length (LPR) | 100 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Machine Side (DCONMS) | 50 mm | Body Material | Steel |
| Connection Diameter Workpiece Side (DCONWS) | 25 mm | Measurement Type | Metric |
| Overall Length (OAL) | 130 mm | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Shank Size (SS) | 50 | Unit | M |
| Body Diameter (BD) | 63 mm |
Product Features

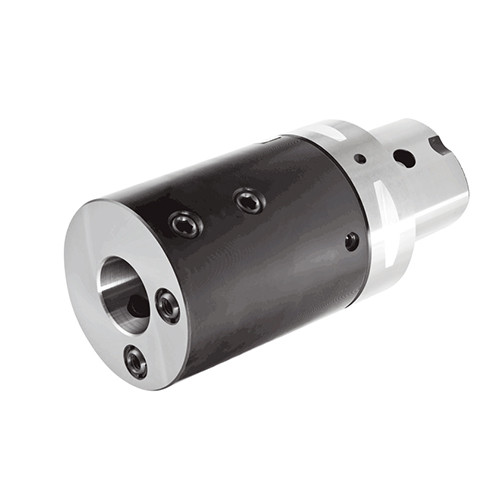

| Family Description | Adapters with CAMFIX (ISO 26623-1 standard) exchangeable shanks for boring bars with reduction sleeves. | FamilyName | C#-ABB |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
2.1330
Name
Holders
FamilyName
C#-ABB
BrandName
Iscar
