| Protruding Length (LPR) | 105 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Machine Side (DCONMS) | 63 mm | Body Material | Steel |
| Connection Diameter Workpiece Side (DCONWS) | 40 mm | Measurement Type | Metric |
| Overall Length (OAL) | 137 mm | Tool Type | HSK -T (ISO 12164-3) |
| Shank Size (SS) | 63 | Connection Code Machine Side (CCMS) | HSK |
| Body Diameter (BD) | 75 mm | Unit | M |
Product Features

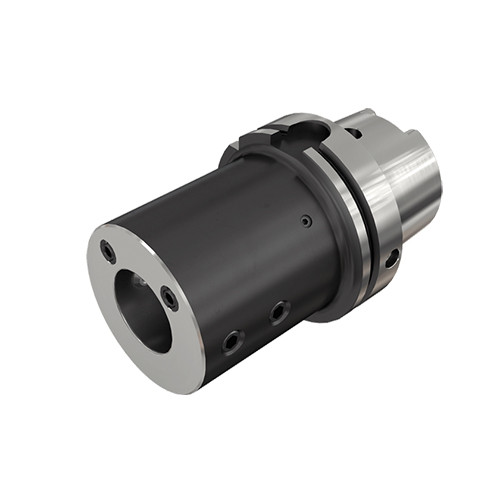

| Family Description | Adapters with HSK exchangeable shanks for boring bars with reduction sleeves. | FamilyName | HSK A-WH ABB |
| Remarks | Complies with ICTM standard (ISO 12164-3) Not suitable for ATC (automatic tool changer) on some multi-tasking machine models, please consult your MTB A cooling tube must be used with all coolant through HSK spindles (should be ordered separately) For shank dimensions, click on More Info | BrandName | Iscar |
| COO | Italy |
Shipping Info
Weight per item
2.6870
Name
Holders
FamilyName
HSK A-WH ABB
BrandName
Iscar
Related Documentation
Coolant Nozzle Adjustment Instructions: 1.Open the nut by turning it approximately three-quarters of a turn counter clockwise. 2.Adjust the coolant nozzle eye so that it will direct the coolant to the area of the cutting edge. 3.Close the nut by turning it approximately three-quarters of a turn clockwise. 4.The special (WRENCH NOZZLE HP M12) key should be used.
