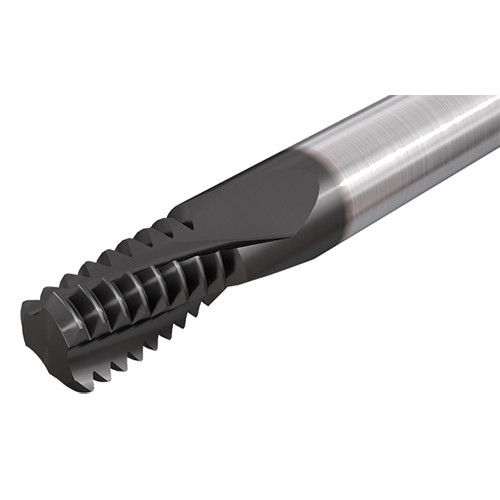

MTEC E 1212D20 1.75ISO IC908
Solid carbide external threading endmills used for ISO thread profile.

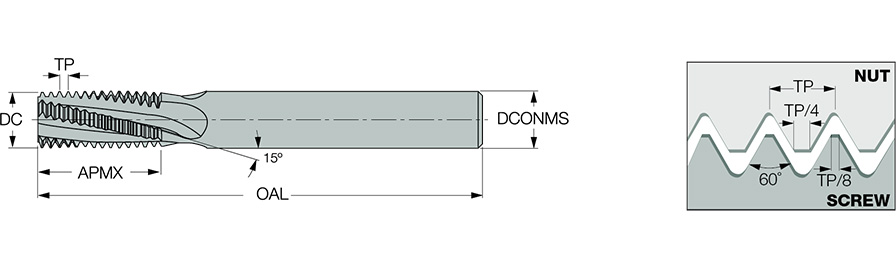

| Thread Pitch (TP) | 1.75 mm | Flute Helix Angle (FHA) | 15 Degrees |
| Thread Standard | THFT | | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Measurement Type | Metric |
| Cutting Diameter (DC) | 12 mm | Grade | IC908 |
| Overall Length (OAL) | 84 mm | Tool Type | Solid carbide thread mills |
| Flute Count (NOF) | 4 | Depth of Cut Maximum (APMX) | 20.1 mm |
| Shank Type | Round | Body Material | Carbide |
| Coating | TiAlN | Connection Code Machine Side (CCMS) | Cylindrical |
| Application | | External Thread Milling | | Thread Form Type (THFT) | M60 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Unit | M |
Product Features
| Family Description | Solid carbide external threading endmills used for ISO thread profile. | COO | Israel |
Shipping Info
Weight per item
0.1310
