| Shank Size (SS) | 30 | Measurement Type | Metric |
| Body Diameter (BD) | 12.5 mm | Tool Type | PS BT JIS |
| Connection Retention Knob Thread Size (CRKS) | M12 | Body Half Taper Angle (BHTA) | 75 Degrees |
| Body Length (LB) | 18.4 mm | Body Material | Steel |
| Overall Length (OAL) | 43 mm | Unit | M |
| Application | | Collets & Accessories | |
Product Features
| Family Description | BT pull stud with JIS 6339 retention knob. | FamilyName | PS BT-JIS (Pull Stud) |

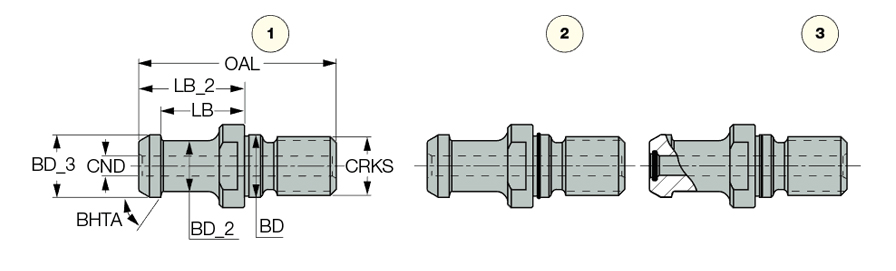

| Remarks | Fig 1: With coolant holes only Fig 2: With coolant holes and external O-ring Fig 3: With coolant holes, external and internal O-rings | BrandName | Iscar |
| COO | Italy |
Shipping Info
Weight per item
0.0360
Name

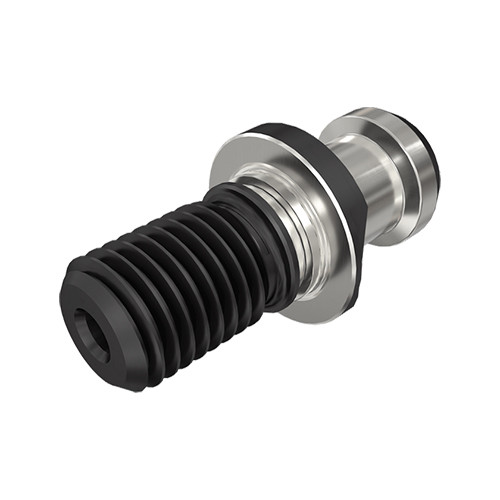

Pull Studs (Retention Knobs)
FamilyName
PS BT-JIS (Pull Stud)
BrandName
Iscar
