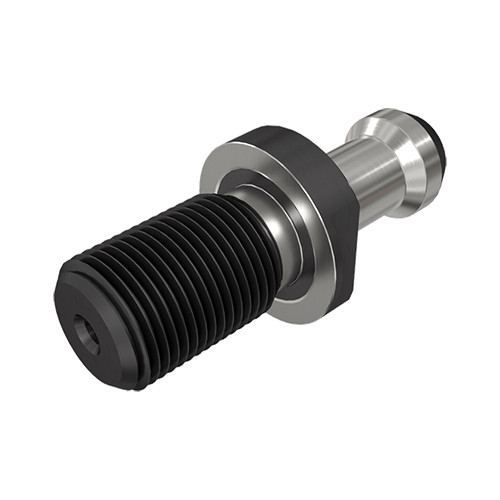

PS CAT40 45 5/8 ANSI B

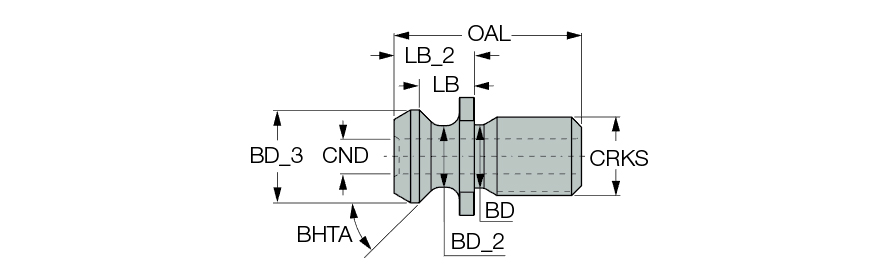

| Shank Size (SS) | 40 | Application | | Collets & Accessories | |
| Body Diameter (BD) | 0.74″ | Measurement Type | Inch |
| Connection Retention Knob Thread Size (CRKS) | 5/8-11 | Tool Type | PS CAT |
| Body Length (LB) | 0.439″ | Body Half Taper Angle (BHTA) | 45 Degrees |
| Overall Length (OAL) | 1-1/2″ | Body Material | Steel |
| Body Length_2 (LB_2) | 0.64″ | Unit | I |
Product Features
| Family Description | CAT Pull Stud ANSI Retention Knobs | FamilyName | PS CAT-ANSI (Pull Stud) |
| Remarks | Coolant holes only in items with a B suffix | BrandName | Iscar |
| COO | Italy |
Shipping Info
Weight per item
0.1279
Name
Pull Studs (Retention Knobs)
FamilyName
PS CAT-ANSI (Pull Stud)
BrandName
Iscar
