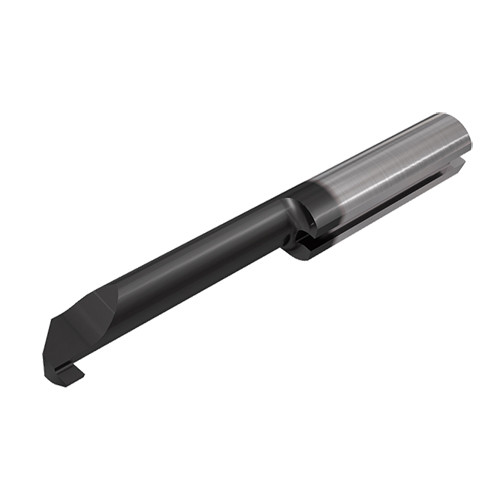

PICCO R 005.0100-15 IC228
Inserts for grooving and turning, Dmin 4 mm.

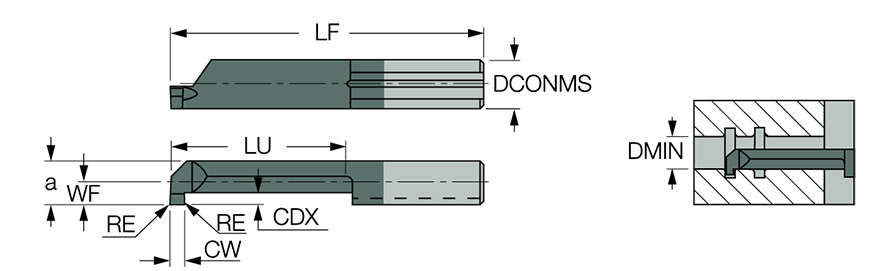

| Connection Diameter Machine Side (DCONMS) | 5 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0 mm | Application | | Int. Groove & Turn | Int. Grooving | |
| Cutting Width (CW) | 1 mm | Tool Type | Solid Carbide Turn Tool |
| Cutting Depth Maximum (CDX) | 1 mm | Minimum Bore Diameter (DMIN) | 5 mm |
| Overall Length (OAL) | 30 mm | Front End Width (a) | 4.4 mm |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN+TiN | Unit | M |
| Grade | IC228 |
Product Features
| Family Description | Inserts for grooving and turning, Dmin 4 mm. | FamilyName | PICCO R/L 002-007 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0090
Name
Solid and Brazed Groove/Turn & Part Off
FamilyName
PICCO R/L 002-007
BrandName
Iscar
