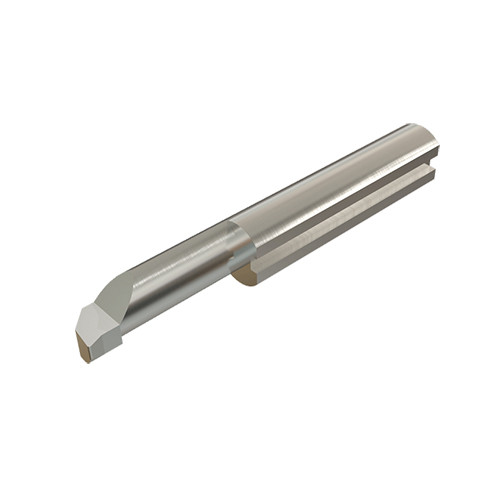

PICCO R 050.7-20B IB55
PICCOCUT CBN tipped inserts for internal turning profiling and chamfering hard steel.

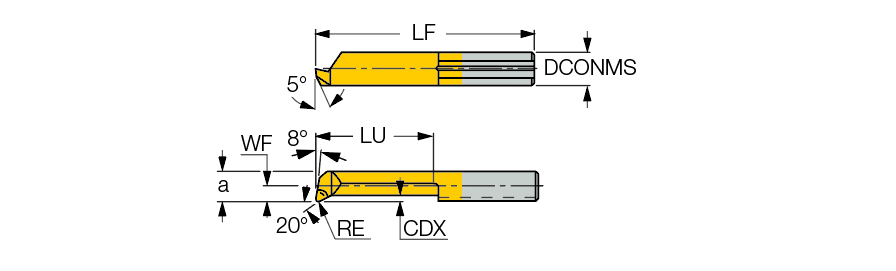

| Connection Diameter Machine Side (DCONMS) | 7 mm | Corner Radius (RE) | 0.15 mm |
| Minimum Bore Diameter (DMIN) | 6.8 mm | Cutting Depth Maximum (CDX) | 0.6 mm |
| Functional Length (LF) | 36.5 mm | Functional Width (WF) | 2.8 mm |
| Cutting Direction (HAND) | Right Hand | Usable Length (LU) | 20 mm |
| Coating | Uncoated | Body Material | Carbide |
| Grade | IB55 | Cutting Edge Material | PCBN |
| Application | | Int. Boring and Profiling | | Tool Type | Solid Carbide Turn Tool |
| Applicable Material | | Cast Iron | Hard Materials | | Measurement Type | Metric |
| Front End Width (a) | 6.3 mm | Unit | M |
Product Features
| Family Description | PICCOCUT CBN tipped inserts for internal turning profiling and chamfering hard steel. | FamilyName | PICCO R 050 (CBN) |
| Remarks | It is not recommended to use coolant when machining with CBN tipped tools Available on request only | BrandName | Iscar |
| COO | Germany |
Shipping Info
Weight per item
0.0180
Name
Solid Boring Bars
FamilyName
PICCO R 050 (CBN)
BrandName
Iscar
