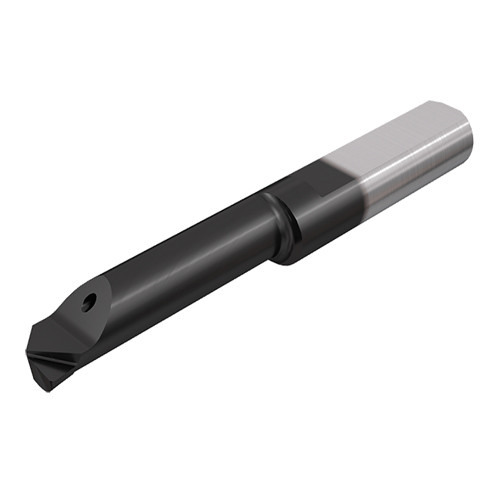

PICCO R 050.2-10N IC908
Inserts with inner coolant channel for internal turning and chamfering

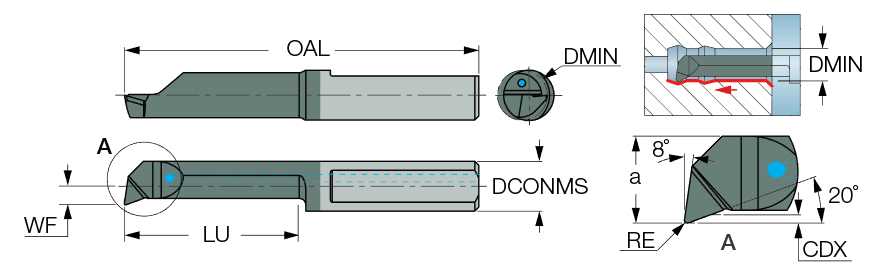

| Connection Diameter Machine Side (DCONMS) | 4.05 mm | Corner Radius (RE) | 0.05 mm |
| Minimum Bore Diameter (DMIN) | 2 mm | Cutting Depth Maximum (CDX) | 0.1 mm |
| Functional Length (LF) | 31 mm | Usable Length (LU) | 9 mm |
| Cutting Direction (HAND) | Right Hand | Body Material | Carbide |
| Coating | TiAlN | Cutting Edge Material | Carbide |
| Grade | IC908 | Tool Type | Solid Carbide Turn Tool |
| Application | | Int. Axial Turning | Int. Boring and Profiling | | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Unit | M |
| Front End Width (a) | 1.7 mm |
Product Features
| Family Description | Inserts with inner coolant channel for internal turning and chamfering | FamilyName | PICCO R/L 050, 053, 055-N (Turning) |
| Remarks | Solid tools are suitable for PICCO-N / PICCO ACE-N type holders only | BrandName | Iscar |
| COO | Germany |
Shipping Info
Weight per item
0.0080
Name
Solid Boring Bars
FamilyName
PICCO R/L 050, 053, 055-N (Turning)
BrandName
Iscar
