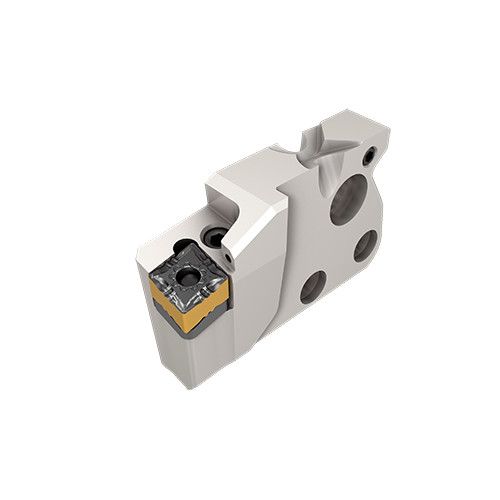

PCLNR-09-PAD-JHP
Lever Lock Adapter with High-Pressure Coolant Mounts 80° Diamond Inserts

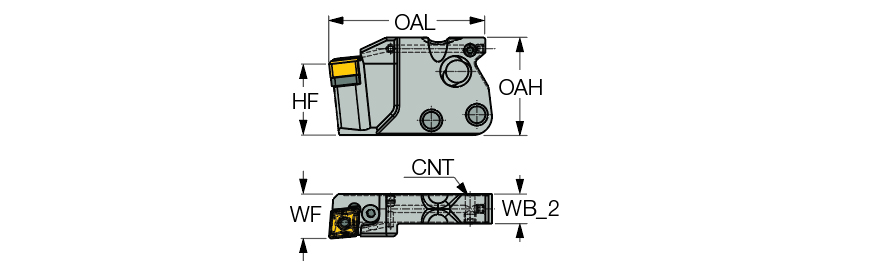

| Overall Length (OAL) | 52.8 mm | Rake Angle Axial (GAMP) | 6 Degrees |
| Functional Width (WF) | 15 mm | Rake Angle Radial (GAMF) | 6 Degrees |
| Inscribed Circle Diameter (IC) | 9.52 mm | Body Material | Steel |
| Cutting Direction (HAND) | Right Hand | Tool Type | Square Shank Turning Tools |
| Master Insert Identification (MIID) | CNG/CNM 0904/0906 | Measurement Type | Metric |
| Application | | Ext. 80° Diamond 95° Approach | | Unit | M |
Product Features
| Family Description | Lever Lock Adapter with High-Pressure Coolant Mounts 80° Diamond Inserts | FamilyName | PCLNR/L-PAD-JHP |
| COO | Switzerland | BrandName | Iscar |
Shipping Info
Weight per item
0.1640
Name
General Indexable Turning Tools
FamilyName
PCLNR/L-PAD-JHP
BrandName
Iscar
