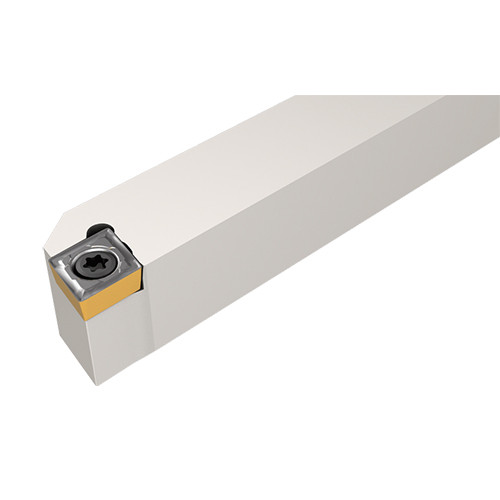

SCACR 1010K-06S
Screw lock tools carrying 80° diamond inserts with 7° clearance angle for swiss-type machines
| Shank Height (H) | 10 mm | Application | | Ext. 80° Diamond 91° Approach | |
| Shank Width (B) | 10 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Functional Length (LF) | 150 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Functional Width (WF) | 10 mm | Body Material | Steel |
| Inscribed Circle Diameter (IC) | 6.35 mm | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
| Master Insert Identification (MIID) | CCMT 060204-14 | Unit | M |
Product Features
| Family Description | Screw lock tools carrying 80° diamond inserts with 7° clearance angle for swiss-type machines | FamilyName | SCACR/L-S |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.1250
Name
General Indexable Turning Tools
FamilyName
SCACR/L-S
BrandName
Iscar
