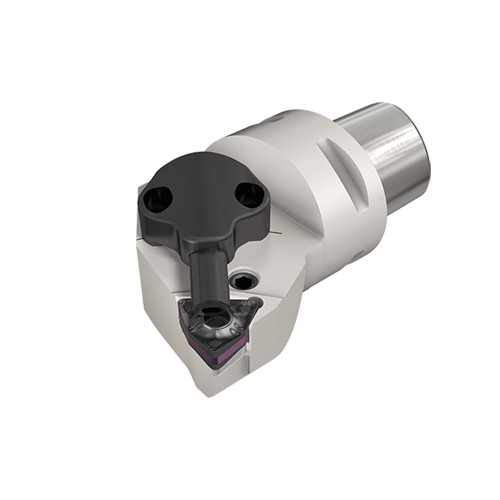

C4 PWLNL-27050-08X-JHP
Lever lock tools with CAMFIX (ISO 26623-1 standard) exchangeable tapered shanks and channels for high-pressure coolant, carrying HELITURN LD WNMX or WNMG inserts (enabled by changing the seat).

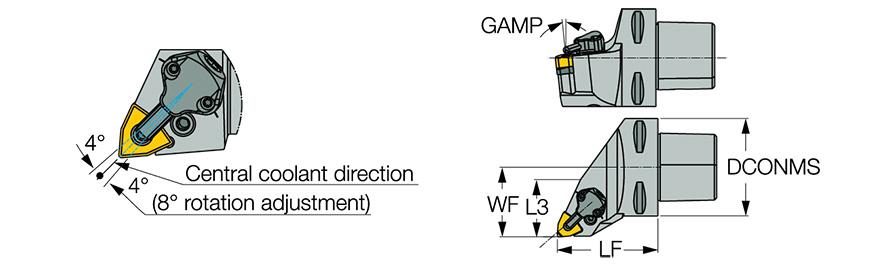

| Overall Length (OAL) | 74 mm | Application | | Ext. 80° Trigon 95° Approach | |
| Functional Length (LF) | 50 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Functional Width (WF) | 27 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Body Material | Steel |
| Inscribed Circle Diameter (IC) | 12.7 mm | Tool Type | Tapered Shank Turning Tools |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Metric |
| Master Insert Identification (MIID) | WNMX 0807, WNMG 0804 | Unit | M |
Product Features
| Family Description | Lever lock tools with CAMFIX (ISO 26623-1 standard) exchangeable tapered shanks and channels for high-pressure coolant, carrying HELITURN LD WNMX or WNMG inserts (enabled by changing the seat). | FamilyName | C#-PWLNR/L-X-JHP |
| Remarks | For more details, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.4970
Name
General Indexable Turning Tools
FamilyName
C#-PWLNR/L-X-JHP
BrandName
Iscar
