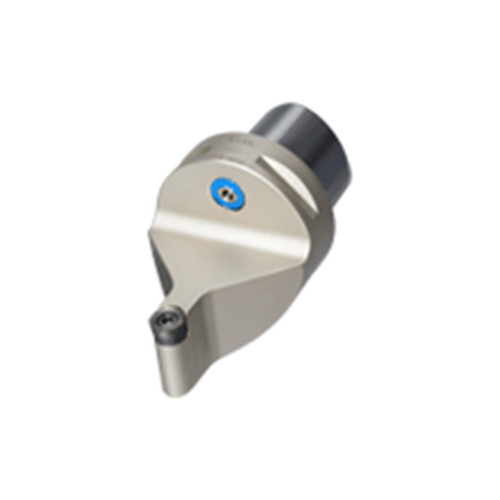

C5 SRDCN-00060-10
| Overall Length (OAL) | 90 mm | Master Insert Identification (MIID) | RC.. 10T3MO |
| Functional Length (LF) | 60 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Head Length (LH) | 18 mm | Body Material | Steel |
| Functional Width (WF) | 5 mm | Tool Type | Tapered Shank Turning Tools |
| Connection Diameter Machine Side (DCONMS) | 50 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 10 mm | Unit | M |
| Cutting Direction (HAND) | Neutral |
Product Features
| Family Description | Screw lock, neutral tools for round inserts with 7° clearance angle and CAMFIX (ISO 26623-1 standard) exchangeable shanks. | FamilyName | C#-SRDCN |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.6180
Name
General Indexable Turning Tools
FamilyName
C#-SRDCN
BrandName
Iscar
