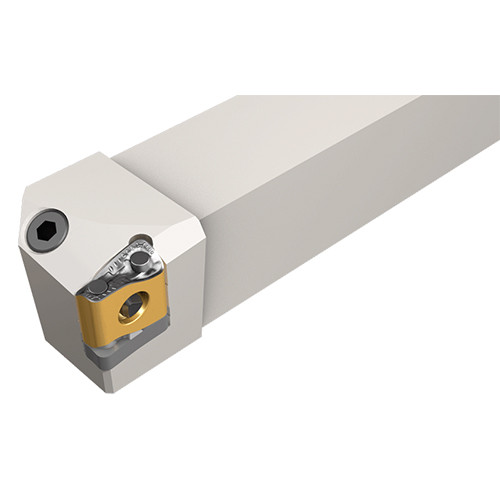

PLANR 3232P-15 TANG
Lever lock tools carrying LNMX.. tangentially clamped inserts. Recommended for heavy longitudinal and face turning.

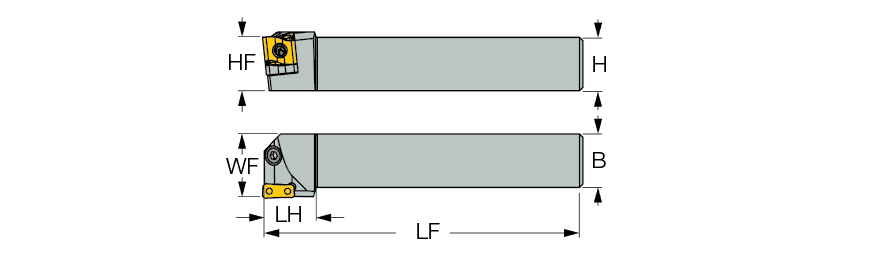

| Shank Height (H) | 32 mm | Application | | Ext. Tangential 93° Approach | |
| Shank Width (B) | 32 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Functional Length (LF) | 170 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Head Length (LH) | 32 mm | Body Material | Steel |
| Functional Width (WF) | 37 mm | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
| Master Insert Identification (MIID) | LNMX 1506..R/L | Unit | M |
Product Features
| Family Description | Lever lock tools carrying LNMX.. tangentially clamped inserts. Recommended for heavy longitudinal and face turning. | FamilyName | PLANR/L-TANG |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
1.3940
Name
General Indexable Turning Tools
FamilyName
PLANR/L-TANG
BrandName
Iscar
