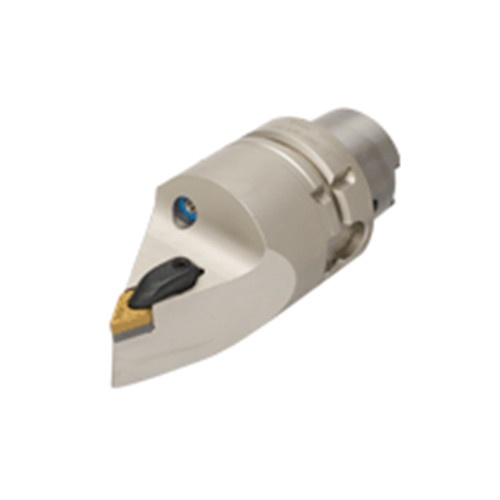

HSK A63WH DDNNN J15
R-clamp, turning tools with HSK taper shank carrying negative DNMG inserts. Comply with the ICTM standard.

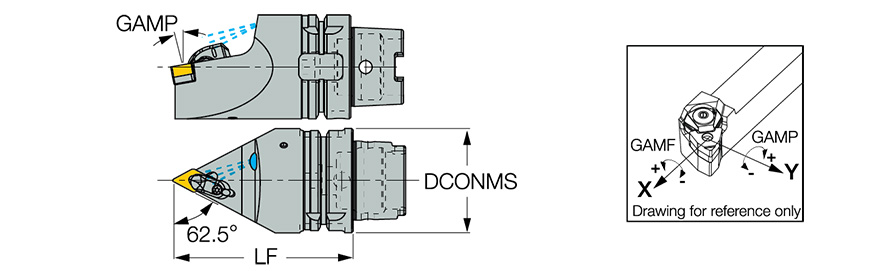

| Overall Length (OAL) | 142 mm | Rake Angle Axial (GAMP) | -10 Degrees |
| Functional Length (LF) | 110 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Connection Diameter Machine Side (DCONMS) | 63 mm | Body Material | Steel |
| Inscribed Circle Diameter (IC) | 12.7 mm | Tool Type | Tapered Shank Turning Tools |
| Cutting Direction (HAND) | Neutral | Measurement Type | Metric |
| Master Insert Identification (MIID) | DN.. 15 | Connection Code Machine Side (CCMS) | HSK |
| Coolant Supply Property (CSP) | Coolant Thru | Unit | M |
| Application | | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 93° Approach | |
Product Features
| Family Description | R-clamp, turning tools with HSK taper shank carrying negative DNMG inserts. Comply with the ICTM standard. | FamilyName | HSK A63WH-DDNNN |

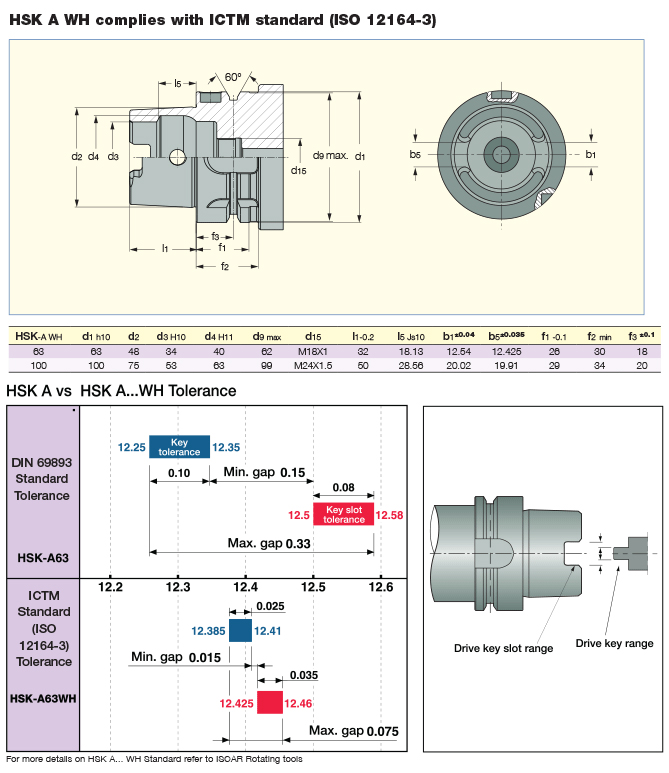

| Remarks | A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). For shank dimensions, Click on More Info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.9310
Name
General Indexable Turning Tools
FamilyName
HSK A63WH-DDNNN
BrandName
Iscar
