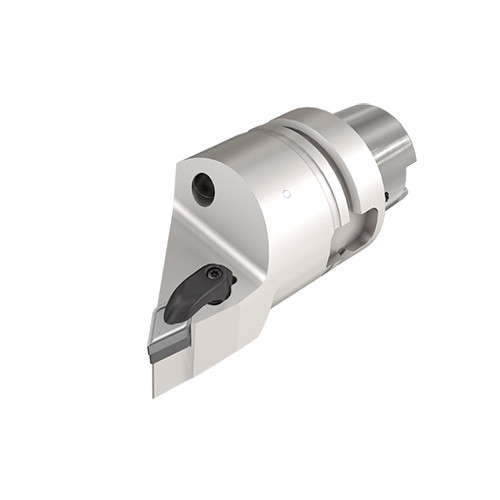

HSK A63WH DDJNR J15
R-clamp turning tools with HSK taper shank carrying negative DNMG inserts for 15° mounting on turn-mill machines (Complies with the ICTM standard).

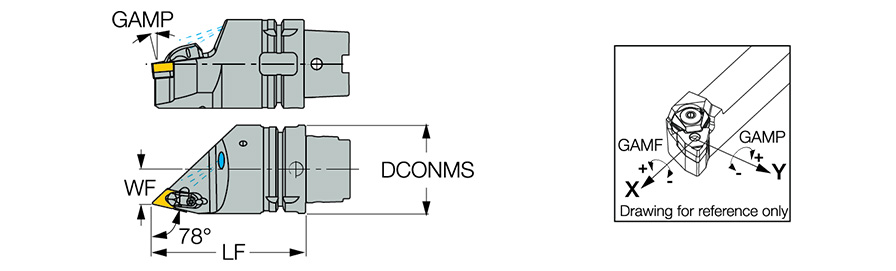

| Overall Length (OAL) | 142 mm | Application | | Ext. 55° Diamond 93° Approach | |
| Functional Length (LF) | 110 mm | Rake Angle Axial (GAMP) | 4.5 Degrees |
| Functional Width (WF) | 25 mm | Rake Angle Radial (GAMF) | 7.5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 63 mm | Body Material | Steel |
| Inscribed Circle Diameter (IC) | 12.7 mm | Tool Type | Tapered Shank Turning Tools |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
| Master Insert Identification (MIID) | DN..4.. | Connection Code Machine Side (CCMS) | HSK |
| Coolant Supply Property (CSP) | Coolant Thru | Unit | M |
Product Features
| Family Description | R-clamp turning tools with HSK taper shank carrying negative DNMG inserts for 15° mounting on turn-mill machines (Complies with the ICTM standard). | FamilyName | HSK A63WH-DDJNR/L |
| Remarks | Complies with ICTM standard (ISO 12164-3). A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). For shank dimensions, Click on More Info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.9230
Name
General Indexable Turning Tools
FamilyName
HSK A63WH-DDJNR/L
BrandName
Iscar
