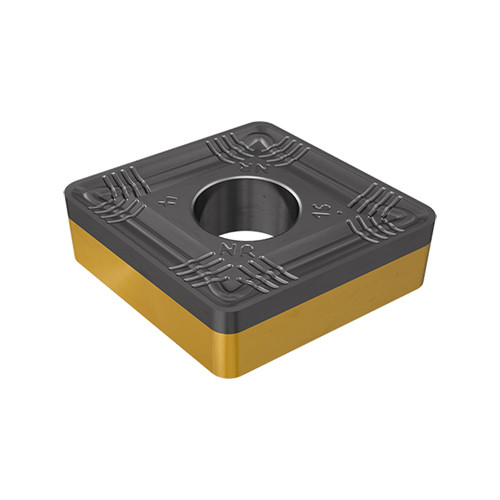

CNMM 190616-NR IC907
Single-sided 80° rhombic inserts, used for rough turning applications. Feed range from 0.4 to 1.0 mm/rev and depth of cut from 2.0 to 10 mm.
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 7.94 mm |
| Application | | Ext. 100° Diamond 75° Approach | Ext. 100° Diamond 75°Face Appr | Ext. 80° Diamond 95° Approach | Int. 80° Diamond 95° Approach | | Tool Type | Turn Negative Inserts |
| Insert Style | CNMM | Min D.O.C. | 2 mm |
| Corner Radius (RE) | 1.6 mm | Depth of Cut Maximum (APMX) | 10 mm |
| Insert Size | 644-NR | Min. Turning Feed (ft(min)) | 0.4 mm/rev |
| Cutting Edge Length (L) | 19.03 mm | Max. Turning Feed (ft(max)) | 1 mm/rev |
| Insert Thickness (S) | 6.35 mm | Clearance Angle Major (AN) | 0 Degrees |
| Inscribed Circle Diameter (IC) | 19.05 mm | Chip Breaker Type | NR |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC907 | Unit | M |
Product Features
| Family Description | Single-sided 80° rhombic inserts, used for rough turning applications. Feed range from 0.4 to 1.0 mm/rev and depth of cut from 2.0 to 10 mm. | FamilyName | CNMM-NR |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0305
Name
Turning Indexable Inserts
FamilyName
CNMM-NR
BrandName
Iscar
