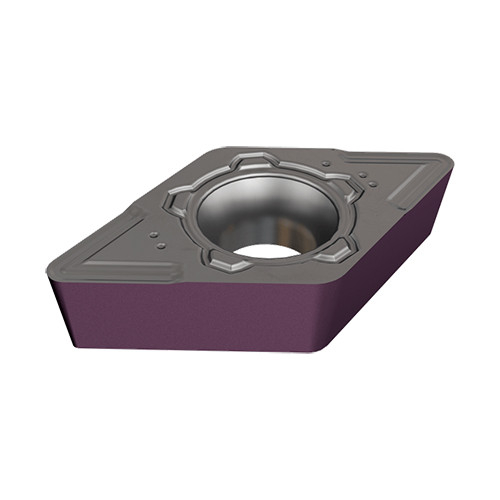

DCMT 13T508-M3M-SL IC6015
55° rhombic positive flank inserts, first choice for machining stainless and low carbon steel. A ridge at the insert bottom which fits onto a long groove on the tool's seat ensures high edge location precision.

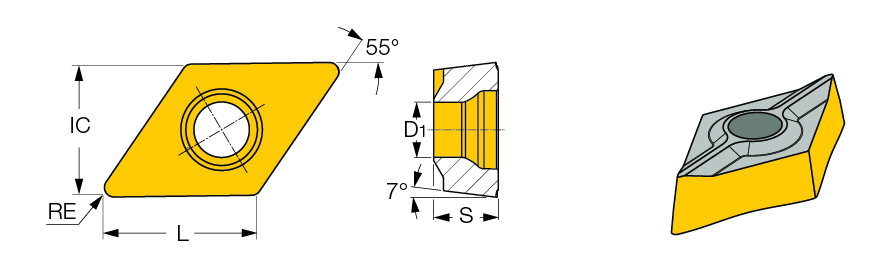

| Applicable Material | | Stainless Steel | | Tool Type | Turn Positive Inserts |
| Corner Radius (RE) | 0.8 mm | Min D.O.C. | 0.9 mm |
| Insert Size | 13T508 | Depth of Cut Maximum (APMX) | 3.5 mm |
| Cutting Edge Length (L) | 13.4 mm | Min. Turning Feed (ft(min)) | 0.1 mm/rev |
| Insert Thickness (S) | 5.11 mm | Max. Turning Feed (ft(max)) | 0.25 mm/rev |
| Inscribed Circle Diameter (IC) | 11 mm | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiCN+Al2O3+TiN | Body Material | Carbide |
| Grade | IC6015 | Unit | M |
| Fixing Hole Diameter (D1) | 4.5 mm |
Product Features
| Family Description | 55° rhombic positive flank inserts, first choice for machining stainless and low carbon steel. A ridge at the insert bottom which fits onto a long groove on the tool's seat ensures high edge location precision. | FamilyName | DCMT-M3M-SL |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0093
Name
Turning Indexable Inserts
FamilyName
DCMT-M3M-SL
BrandName
Iscar
