| Applicable Material | | Steel | Cast Iron | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 80° Trigon 95° Approach | Int. 80° Trigon 95° Approach | | Min D.O.C. | 0.8 mm |
| Insert Style | WNMG | Depth of Cut Maximum (APMX) | 3 mm |

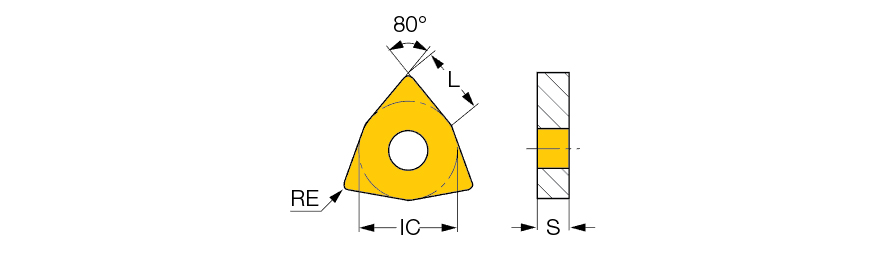

| Corner Radius (RE) | 0.8 mm | Min. Turning Feed (ft(min)) | 0.08 mm/rev |
| Insert Size | 060408 | Max. Turning Feed (ft(max)) | 0.25 mm/rev |
| Cutting Edge Length (L) | 6.52 mm | Clearance Angle Major (AN) | 0 Degrees |
| Insert Thickness (S) | 4.76 mm | Chip Breaker Type | NF |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN+Al2O3+TiCN+TiN | Unit | M |
| Grade | IC8150 |
Product Features

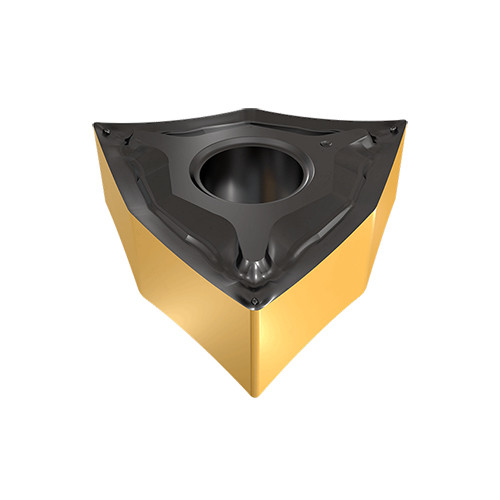

| Family Description | Double-sided Trigon inserts used for semi-finishing and finishing applications. Low cutting forces due to very sharp edge and positive rake. | FamilyName | WNMG-NF |

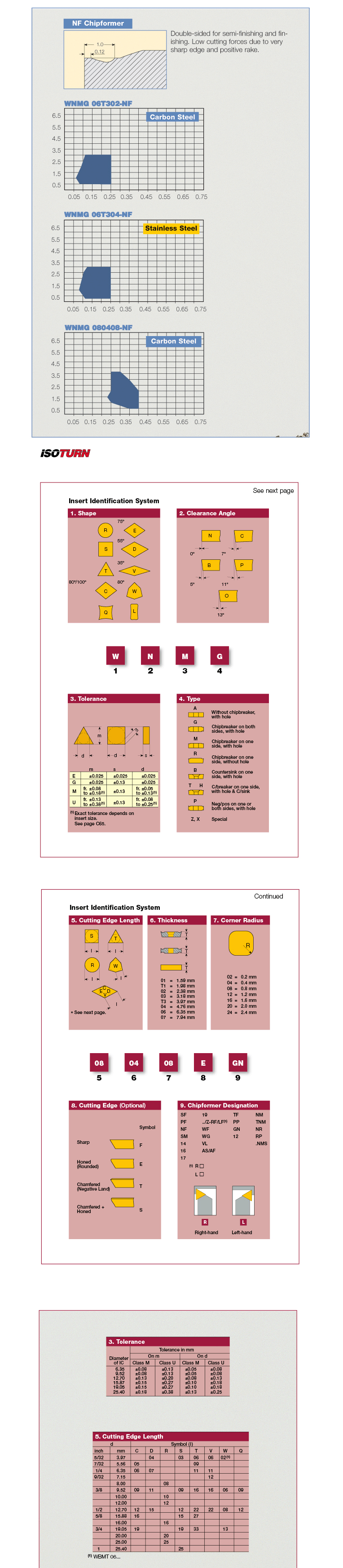

| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0066
Name
Turning Indexable Inserts
FamilyName
WNMG-NF
BrandName
Iscar
