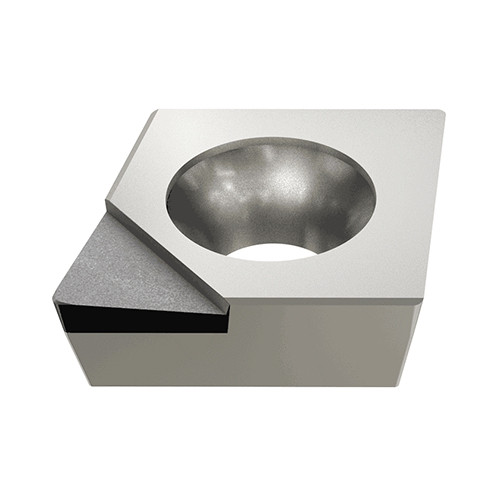

CCMT 09T304D ID5
80° rhombic inserts with PCD single-top corner, brazed tip and a positive rake angle. Used for aluminum finishing
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Tool Type | Turn Ultra hard Inserts |
| Application | | Ext. 80° Diamond 91° Approach | Ext. 80° Diamond 95° Approach | Int. 80° Diamond 95° Approach | Int. Back Turning 80° Diamond | Int. Chamfering 80° Diamond | | Min D.O.C. | 0.1 mm |
| Insert Style | CCMT | Depth of Cut Maximum (APMX) | 3 mm |
| Corner Radius (RE) | 0.4 mm | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Insert Size | 09T304 | Max. Turning Feed (ft(max)) | 0.3 mm/rev |

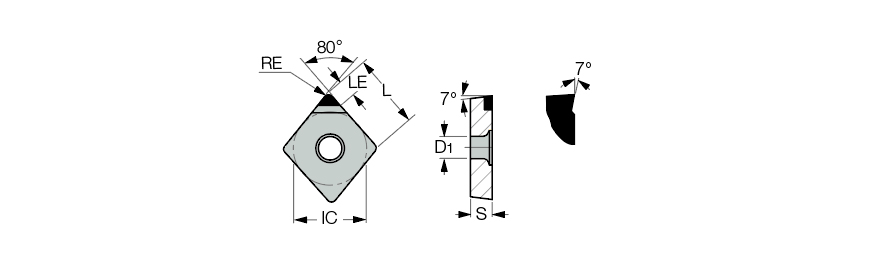

| Cutting Edge Length (L) | 9.7 mm | Clearance Angle Major (AN) | 7 Degrees |
| Insert Thickness (S) | 3.97 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 9.52 mm | Chip Breaker Type | DW |
| Cutting Edge Material | PCD | Measurement Type | Metric |
| Grade | ID5 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 4.4 mm | Unit | M |
Product Features
| Family Description | 80° rhombic inserts with PCD single-top corner, brazed tip and a positive rake angle. Used for aluminum finishing | FamilyName | CCMT (PCD) |
| Remarks | For dimensions and tolerances, Click on More Info | BrandName | Iscar |
| COO | Korea |
