| Applicable Material | | Hard Materials | | Fixing Hole Diameter (D1) | 1.9 mm |
| Application | | Ext. 80° Diamond 91° Approach | Ext. 80° Diamond 95° Approach | Int. 80° Diamond 90° Approach | Int. 80° Diamond 95° Approach | Int. Back Turning 80° Diamond | | Tool Type | Turn Ultra hard Inserts |
| Insert Style | CCGW | Min D.O.C. | 0.05 mm |
| Corner Radius (RE) | 0.2 mm | Depth of Cut Maximum (APMX) | 0.5 mm |
| Insert Size | 03X102 | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Cutting Edge Length (L) | 3.63 mm | Max. Turning Feed (ft(max)) | 0.2 mm/rev |
| Insert Thickness (S) | 1.39 mm | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 3.57 mm | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | PCBN | Measurement Type | Metric |
| Coating | Uncoated | Body Material | Carbide |
| Grade | IB10H | Unit | M |

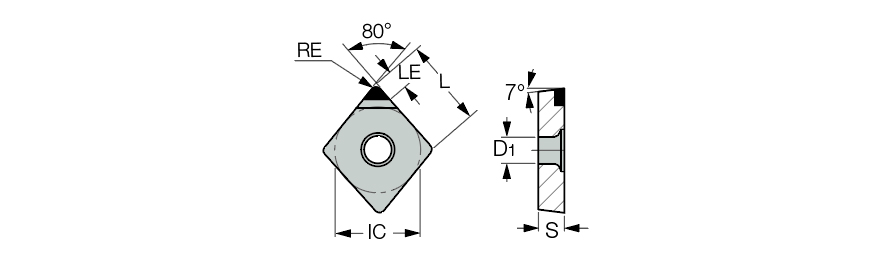

Product Features

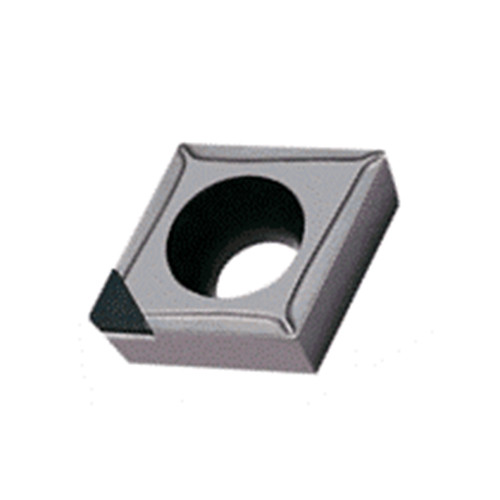

| Family Description | 80° rhombic inserts with CBN single top corner brazed tip, used for finishing forged steel. | FamilyName | CCGW/CCMT (CBN) |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Japan |
Shipping Info
Weight per item
0.0050
Name
Turning Indexable Inserts
FamilyName
CCGW/CCMT (CBN)
BrandName
Iscar
