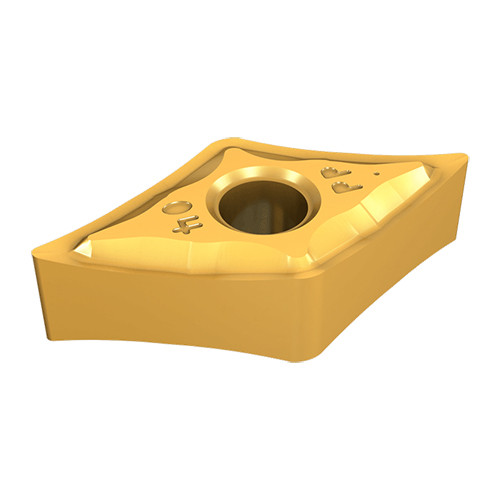

DNMG 110408-PP IC830
Double-sided 55° rhombic inserts with a positive rake angle and sharp, positive-radial edge. Used for machining very ductile materials such as aluminum alloys, soft, low carbon steel, stainless steel, and high temperature alloys.
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 93° Approach | Int. 55° Diamond 93 95° Approac | | Min D.O.C. | 1 mm |

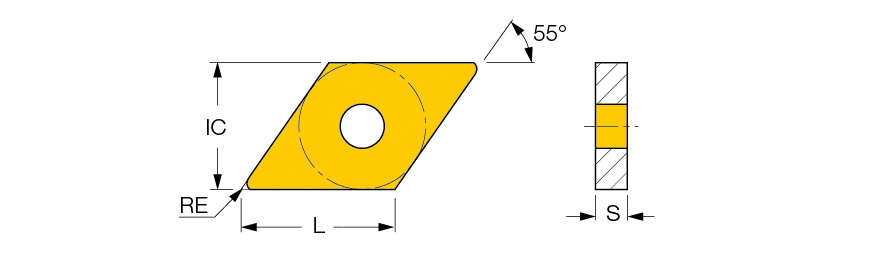

| Insert Style | DNMG | Depth of Cut Maximum (APMX) | 3.5 mm |
| Corner Radius (RE) | 0.8 mm | Min. Turning Feed (ft(min)) | 0.12 mm/rev |
| Insert Size | 332-PP | Max. Turning Feed (ft(max)) | 0.3 mm/rev |
| Cutting Edge Length (L) | 11.63 mm | Clearance Angle Major (AN) | 0 Degrees |
| Insert Thickness (S) | 4.76 mm | Chip Breaker Type | PP |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | AlTiN+TiN | Unit | M |
| Grade | IC830 |
Product Features
| Family Description | Double-sided 55° rhombic inserts with a positive rake angle and sharp, positive-radial edge. Used for machining very ductile materials such as aluminum alloys, soft, low carbon steel, stainless steel, and high temperature alloys. | FamilyName | DNMG/DNGG-PP |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0032
Name
Turning Indexable Inserts
FamilyName
DNMG/DNGG-PP
BrandName
Iscar
