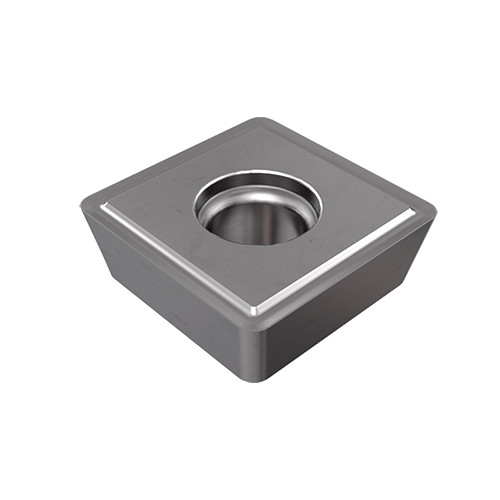

SOMX 050204-DT IC808
Inserts for DR drills with a DT chipformer for medium-to-high feeds general use applications.

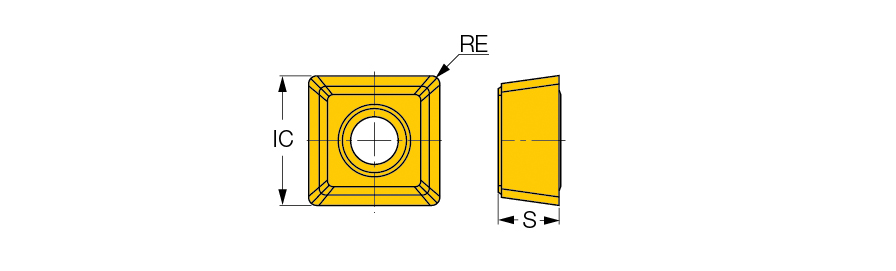

| Insert Thickness (S) | 2.4 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Inscribed Circle Diameter (IC) | 5.4 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.35 mm | Tool Type | Indexable drilling inserts |
| Coating | TiAlN+AlTiN+TiN | Measurement Type | Metric |
| Grade | IC808 | Body Material | Carbide |
| Application | | Drill Mill | Drilling | | Unit | M |
Product Features
| Family Description | Inserts for DR drills with a DT chipformer for medium-to-high feeds general use applications. | COO | Israel |
| Remarks | DT - a general use chipformer for medium to high feed rates |
Shipping Info
Weight per item
0.0020
