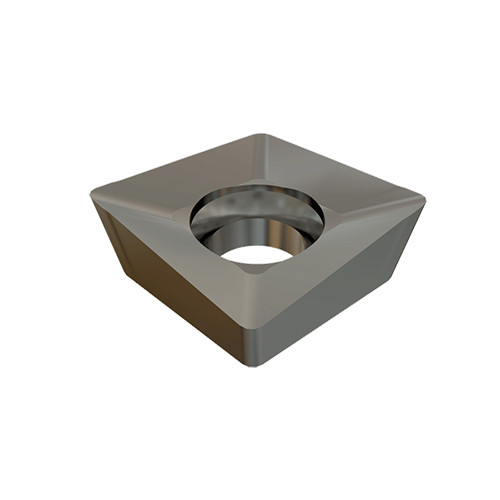

XOMT 060204-DT IC520M
Inserts for DR drills and A-SXFOR/L boring bars.

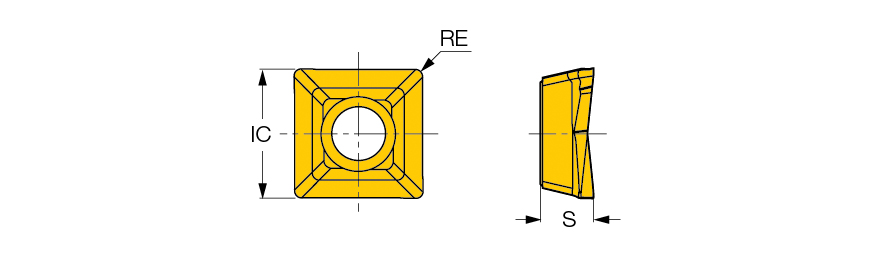

| Cutting Edge Length (L) | 6.16 mm | Application | | Drilling | Drilling Ext Face Int. Turning | Int. XOMT 88° Approach | |
| Insert Thickness (S) | 2.56 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | |
| Insert Included Angle (EPSR) | 90 Degrees | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 6.16 mm | Tool Type | Indexable drilling inserts |
| Corner Radius (RE) | 0.4 mm | Measurement Type | Metric |
| Coating | TiCN | Body Material | Carbide |
| Grade | IC520M | Unit | M |
Product Features
| Family Description | Inserts for DR drills and A-SXFOR/L boring bars. | COO | Israel |
| Remarks | Two cutting edges For hard materials and interrupted cut |
Shipping Info
Weight per item
0.0021
