H600 WXCU 070515T IC808
Double-sided inserts with 6 cutting edges for fast feed machining
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | | Cutting Edge Material | Carbide |
| Insert Length (INSL) | 7.16 mm | Tool Type | Double sided Inserts |
| Corner Radius (RE) | 1.5 mm | Minimum Feed per Tooth (fz(min)) | 0.68 mm/tooth |
| Insert Thickness (S) | 5.9 mm | Number of Cutting Edges | 6 |
| Coating | TiAlN+AlTiN+TiN | Measurement Type | Metric |
| Grade | IC808 | Body Material | Carbide |
| Maximum Feed per Tooth (fz(max)) | 1.37 mm/tooth | Unit | M |
Product Features
| Family Description | Double-sided inserts with 6 cutting edges for fast feed machining | FamilyName | H600 WXCU |

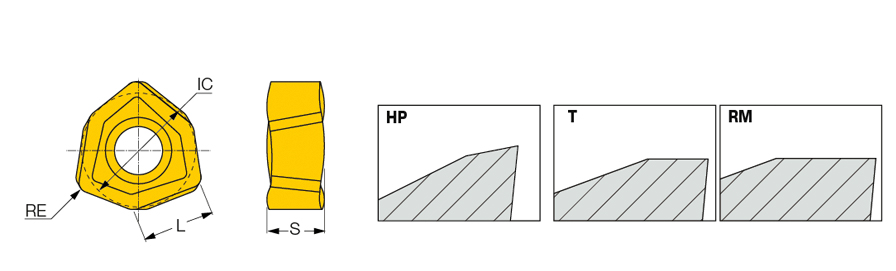

| Remarks | HP - for stainless steel and high temperature alloys T - for alloy steel and cast iron (I mark on top rake face for identification) RM - for interrupted cut and hard materials For cutting conditions click on More info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0070
Name
Milling Indexable Inserts
FamilyName
H600 WXCU
BrandName
Iscar
