S845 SNHU 1305ANR-MM IC830

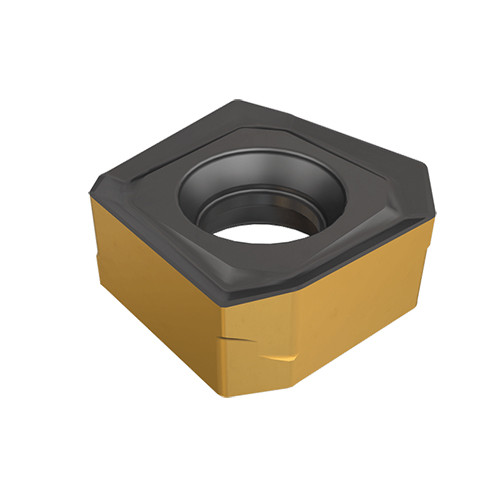

Double-sided square inserts with 8 cutting edges (HELIDO 845 line).
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.3 mm/tooth |
| Application | | Facing | Fast Feed Milling | Slanted Shoulder & Chamfer | | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.8 mm | Tool Type | Double sided Inserts |
| Depth of Cut Maximum (APMX) | 6 mm | Minimum Feed per Tooth (fz(min)) | 0.15 mm/tooth |
| Inscribed Circle Diameter (IC) | 13 mm | Number of Cutting Edges | 8 |
| Insert Thickness (S) | 6.2 mm | Measurement Type | Metric |
| Insert Included Angle (EPSR) | 90 Degrees | Body Material | Carbide |
| Coating | AlTiN+TiN | Unit | M |
| Grade | IC830 |
Product Features
| Family Description | Double-sided square inserts with 8 cutting edges (HELIDO 845 line). | FamilyName | S845 SNMU/SNHU-13 |
| Remarks | S845 SNHU - Precision ground S845 SNMU - Utility | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0098
Name
Milling Indexable Inserts
FamilyName
S845 SNMU/SNHU-13
BrandName
Iscar
