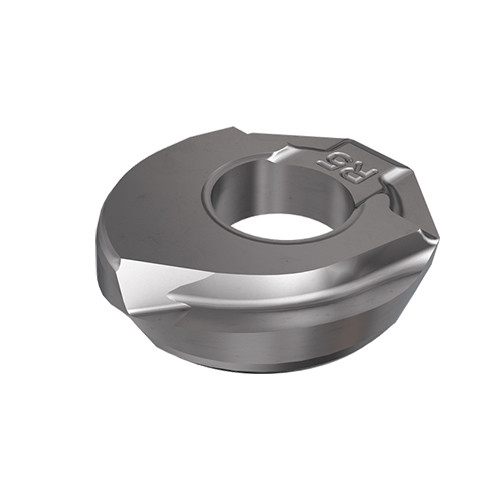

HBR D200-QF IC328
BALLPLUS, 2 cutting edges (fully effective), 220° spherical cutting profile inserts. Used for profiling, up and down ramping, steep profiles and undercutting. Accuracy is within 0.01mm. May be used for roughing or finishing applications.
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Cutting Direction (HAND) | Right Hand |
| Application | | Helical Interpolation | Profiling | Rampdown | Undercutting | | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 10 mm | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 13.4 mm | Minimum Feed per Tooth (fz(min)) | 0.08 mm/tooth |
| Insert Thickness (S) | 4.65 mm | Number of Cutting Edges | 2 |
| Coating | TiCN | Measurement Type | Metric |
| Grade | IC328 | Body Material | Carbide |
| Maximum Feed per Tooth (fz(max)) | 0.15 mm/tooth | Unit | M |
Product Features
| Family Description | BALLPLUS, 2 cutting edges (fully effective), 220° spherical cutting profile inserts. Used for profiling, up and down ramping, steep profiles and undercutting. Accuracy is within 0.01mm. May be used for roughing or finishing applications. | FamilyName | HBR-QF |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0178
Name
Milling Indexable Inserts
FamilyName
HBR-QF
BrandName
Iscar
