LNMT 1506PN-R HT IC910

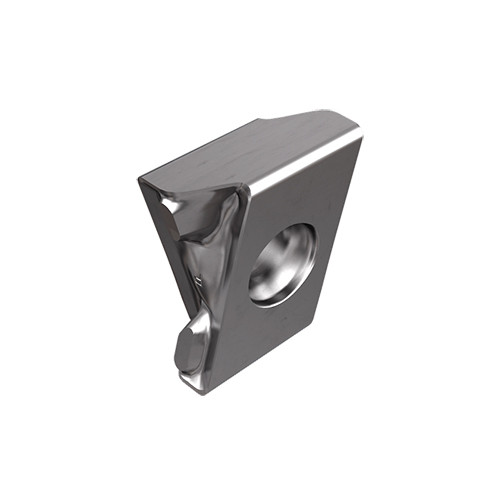

TANGMILL Tangentially clamped inserts featuring 4 straight, right-hand cutting edges. Recommended mainly for machining cast iron.
| Applicable Material | | Steel | Cast Iron | | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Application | | Facing | Shouldering | Slotting | | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 15 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.8 mm | Tool Type | Mill Tangential Inserts |
| Depth of Cut Maximum (APMX) | 12 mm | Minimum Feed per Tooth (fz(min)) | 0.15 mm/tooth |
| Insert Width (W1) | 6 mm | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 13.93 mm | Measurement Type | Metric |
| Insert Included Angle (EPSR) | 90 Degrees | Body Material | Carbide |
| Coating | AlTiN | Unit | M |
| Grade | IC910 |
Product Features
| Family Description | TANGMILL Tangentially clamped inserts featuring 4 straight, right-hand cutting edges. Recommended mainly for machining cast iron. | FamilyName | LNMT/LNHT 1506PN-R HT |
| Remarks | LNMT-utility inserts, LNHT-precision inserts For mismatch as a function of cutting diameter, Click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0124
Name
Milling Indexable Inserts
FamilyName
LNMT/LNHT 1506PN-R HT
BrandName
Iscar
