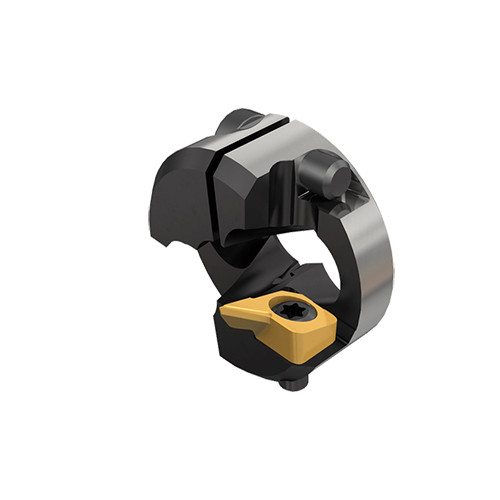

RING DCM 130
Chamfering ring mounted on CHAM-DRILL drills for drilling and chamfering in one operation
| Cutting Diameter Maximum (DCX) | 13.4 mm | Measurement Type | Metric |
| Cutting Diameter Minimum (DCN) | 13 mm | PackSize | 1 |
| Master Insert Identification (MIID) | XOGX | Remarks | RING DCM can be mounted only on DCM 3XD and DCM 5XD drills. |
| Shank Size (SS) | DCM 130 | Body Material | Steel |
| Application | | Chamfering | | Unit | M |
| Tool Type | Chamfering drills |
Product Features
| Family Description | Chamfering ring mounted on CHAM-DRILL drills for drilling and chamfering in one operation | COO | Israel |
| Remarks | RING DCM can be mounted only on DCM 3XD and DCM 5XD drills. |
Shipping Info
Weight per item
0.2160
Related Documentation
Screw SR M5x15-maximum tighening torque 7 Nm. Screw SR M6x20-maximum tighening torque 10 Nm.
