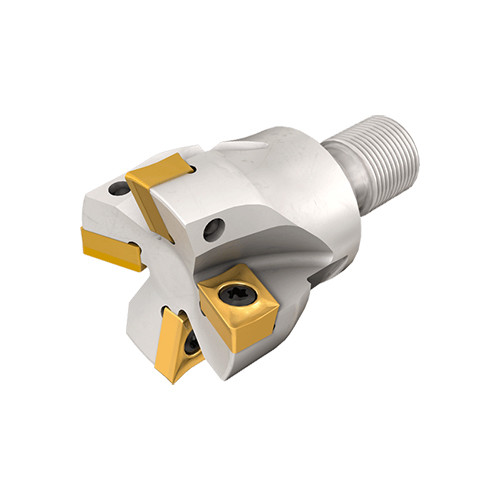

PLX D32-M16-12
Side plungers with FLEXFIT threaded adaptation carrying XCMT 120408TR inserts.

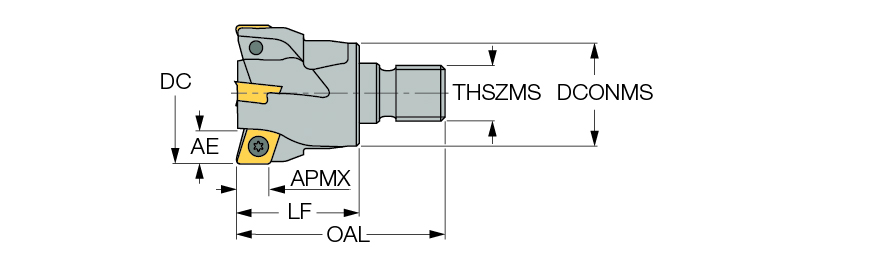

| Application | | Facing | Rampdown | Side Plunging | | Measurement Type | Metric |
| Cutting Diameter (DC) | 32 mm | Tool Type | Plungers cutters |
| Cutting Item Count (CICT) | 3 | Functional Length (LF) | 35 mm |
| Depth of Cut Maximum (APMX) | 9 mm | Body Material | Steel |
| Face Effective Cutting Edge Count (ZEFF) | 3 | Body Diameter (BD) | 30.4 mm |
| Overall Length (OAL) | 60 mm | Connection Code Machine Side (CCMS) | FLEXFIT |
| Coolant Supply Property (CSP) | External | Unit | M |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Side plungers with FLEXFIT threaded adaptation carrying XCMT 120408TR inserts. | FamilyName | PLX-M |
| Remarks | For adaptation, click on More Info No internal coolant When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.2630
Name
Plunge Mills
FamilyName
PLX-M
BrandName
Iscar
