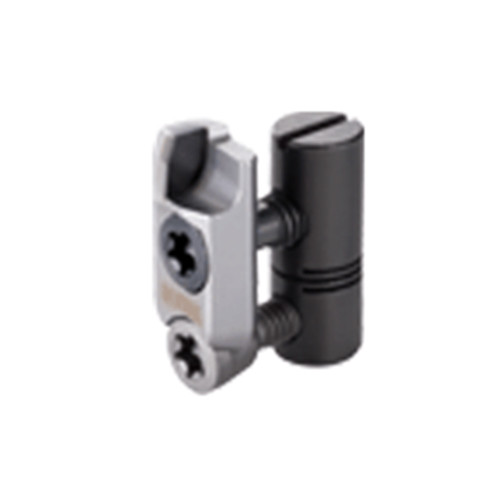

CA-SPM-75RW ID5

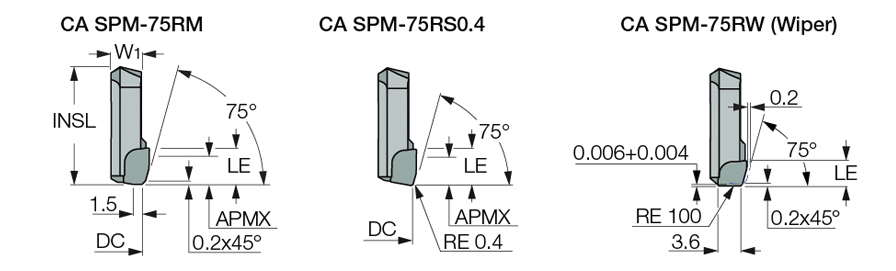

PCD tipped cartridges for SPM-D-CA face mills. 3 types for different applications and surface finish. ID5 PCD tipped are standard for aluminum, the CBN tipped cartridges for machining cast iron are available on request.
| Tool Type | 90° Facemills for Al. & HTA | Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Grade | ID5 |
| Width (W) | 5 mm | Cutting Edge Material | PCD |
| Length | 4.2 mm | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Measurement Type | Metric | Unit | M |
| Application | | Facing | | Roughness (Ra(max)) | 0.4 Micromet |
| Overall Length (OAL) | 19.2 mm | Roughness (Ra(min)) | 0.15 Micromet |
Product Features
| Family Description | PCD tipped cartridges for SPM-D-CA face mills. 3 types for different applications and surface finish. ID5 PCD tipped are standard for aluminum, the CBN tipped cartridges for machining cast iron are available on request. | COO | Italy |
Shipping Info
Weight per item
0.0120
