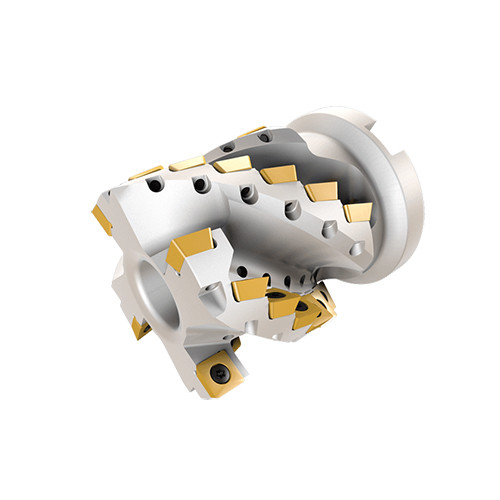

SDK D4.0-3.0-06-1.5-12-C
Extended flute shell mills carrying SDHW/T 1205... inserts.
| Application | | Shouldering | Slotting | | Coolant Supply Property (CSP) | Coolant Thru |

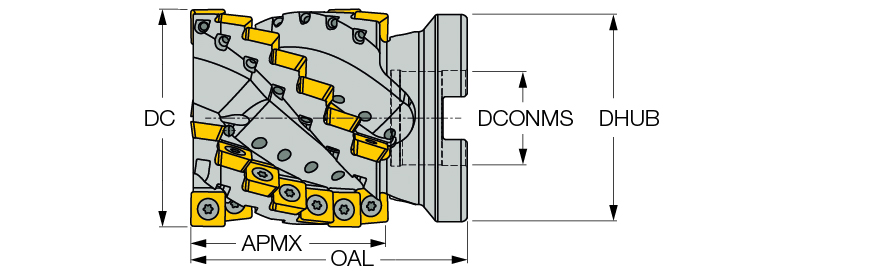

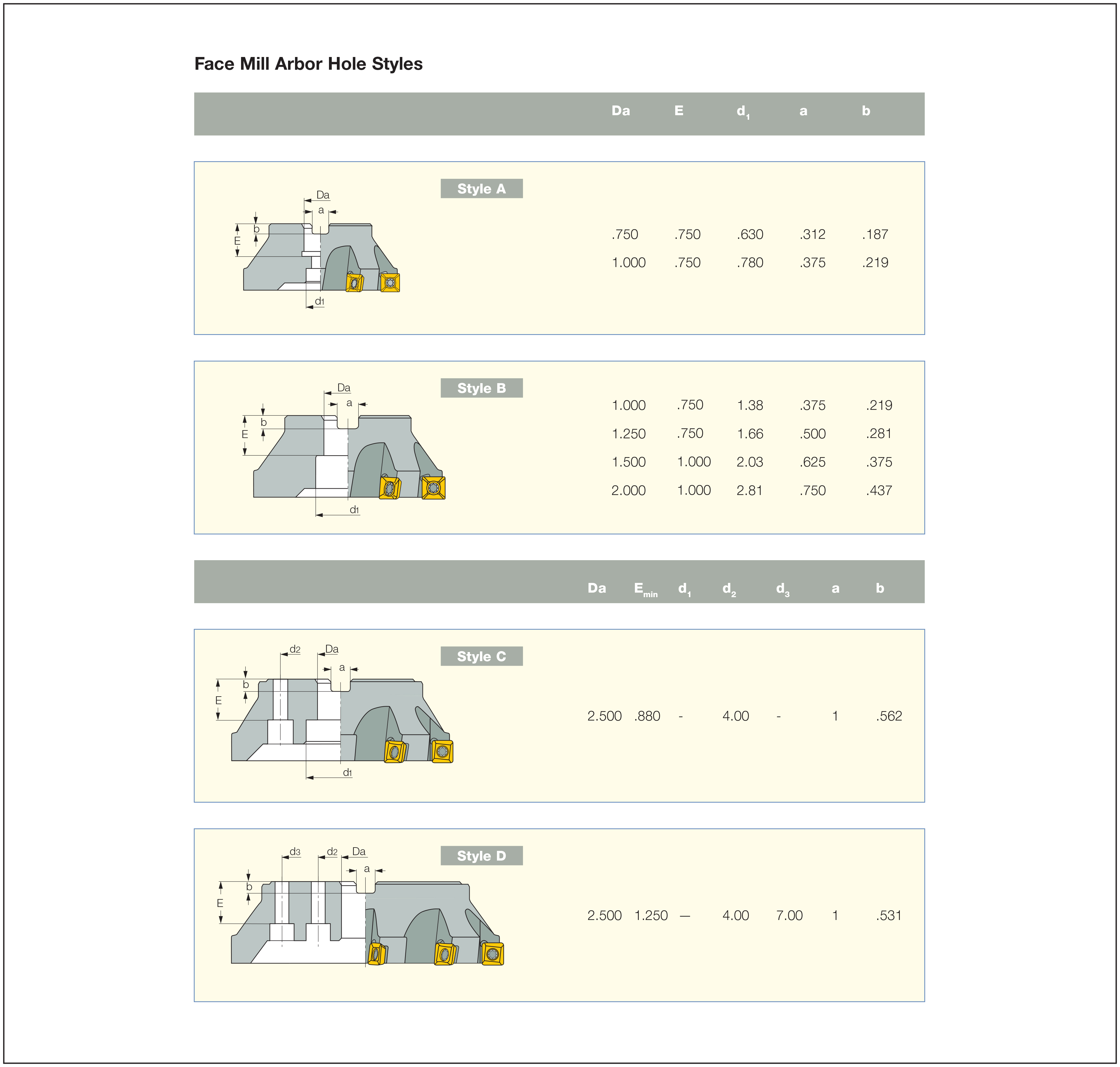

| Cutting Item Count (CICT) | 42 | Arbor Style | A |
| Depth of Cut Maximum (APMX) | 3.028″ | Cutting Direction (HAND) | Right Hand |
| Cutting Diameter (DC) | 4″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Body Material | Steel |
| Flute Count (NOF) | 6 | Hub Diameter (DHUB) | 3.228″ |
| Overall Length (OAL) | 4.331″ | Unit | I |
| Master Insert Identification (MIID) | SDHT 1205 |
Product Features
| Family Description | Extended flute shell mills carrying SDHW/T 1205... inserts. | FamilyName | SDK-12-C/HP |
| Remarks | For adaptation, click on More Info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Name
Shell Mills
FamilyName
SDK-12-C/HP
BrandName
Iscar
