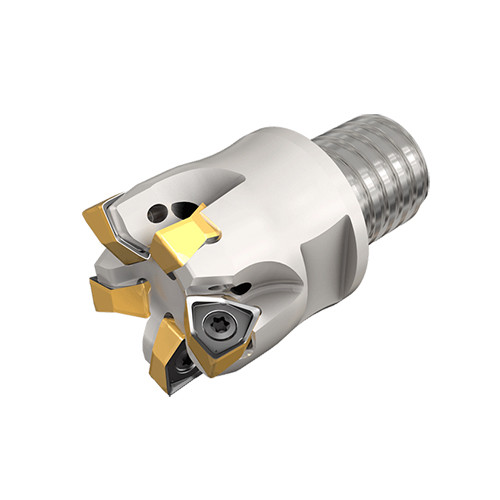

H690 EWN D25-5-MMT15-R04
90° endmills with a MULTI-MASTER threaded connection carrying H690 WNMU 0403 double-sided trigonal inserts with 6 helical cutting edges.

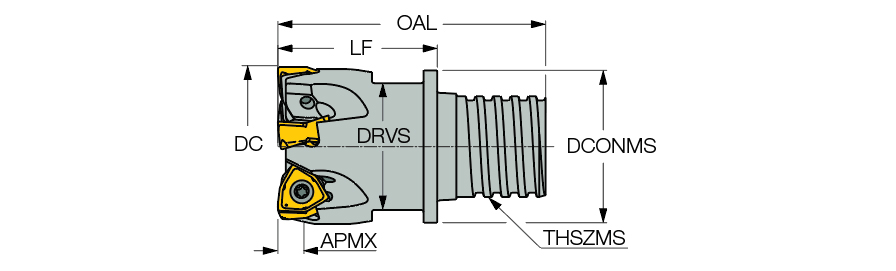

| Cutting Diameter (DC/DCX) | 25 mm | Connection Thread Nominal Size Machine Side (THSZMS) | T15 |
| Cutting Diameter (DC) | 25 mm | Drive Size (DRVS) | 20 mm |
| Cutting Item Count (CICT) | 5 | Flute Count (NOF) | 5 |
| Depth of Cut Maximum (APMX) | 4 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 42 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 1.1 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 23.9 mm | Body Material | Steel |
| Master Insert Identification (MIID) | H690 WNMU 0403 | Connection Code Machine Side (CCMS) | MultiMaster |
| Functional Length (LF) | 25 mm | Unit | M |
Product Features
| Family Description | 90° endmills with a MULTI-MASTER threaded connection carrying H690 WNMU 0403 double-sided trigonal inserts with 6 helical cutting edges. | FamilyName | H690 EWN-MM-04 |
| Remarks | Insert clamping screw must be lubricated every indexing. For adaptation click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.1160
Name
Indexable End Mills
FamilyName
H690 EWN-MM-04
BrandName
Iscar
