T490 ELN D32-3-M16-13

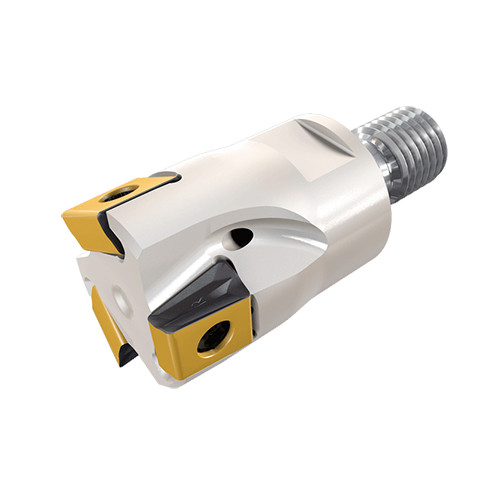

HELITANG, 90° endmills with a FLEXFIT threaded adaptation carrying tangentially clamped inserts with 4 helical cutting edges.

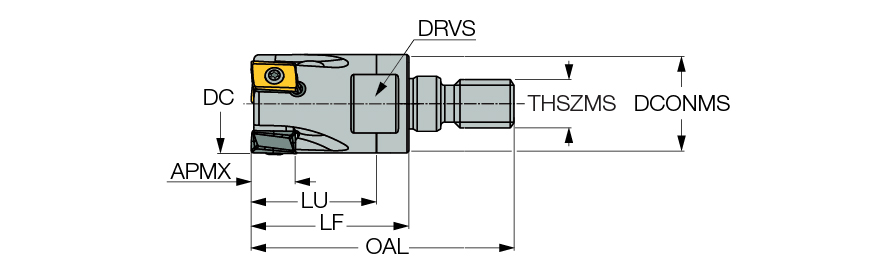

| Cutting Diameter (DC/DCX) | 32 mm | Connection Thread Nominal Size Machine Side (THSZMS) | M16 |
| Cutting Diameter (DC) | 32 mm | Drive Size (DRVS) | 25 mm |
| Cutting Item Count (CICT) | 3 | Flute Count (NOF) | 3 |
| Depth of Cut Maximum (APMX) | 12.5 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 70 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Application | | Facing | Rampdown | Shouldering | Slotting | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 29 mm | Measurement Type | Metric |
| Master Insert Identification (MIID) | T490 LNMT 1306PNTR | Body Material | Steel |
| Functional Length (LF) | 45 mm | Connection Code Machine Side (CCMS) | FLEXFIT |
| Tool Type | 90° indexable endmills | Unit | M |
Product Features
| Family Description | HELITANG, 90° endmills with a FLEXFIT threaded adaptation carrying tangentially clamped inserts with 4 helical cutting edges. | FamilyName | T490 ELN-M |
| Remarks | Before mounting the FLEX-FIT adaptation, clean the mating surfaces and threads. Tighten to eliminate gaps, using the torque value from TQ_3. For adaptation, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.3180
Name
Indexable End Mills
FamilyName
T490 ELN-M
BrandName
Iscar
