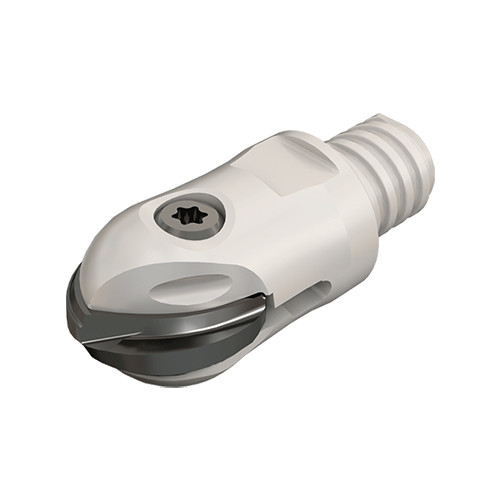

HCM D25/1.0-MMT15
Ball nose multifunction endmills with a MULTI-MASTER threaded adaptation (BALLPLUS). Each tool can carry various milling insert geometries

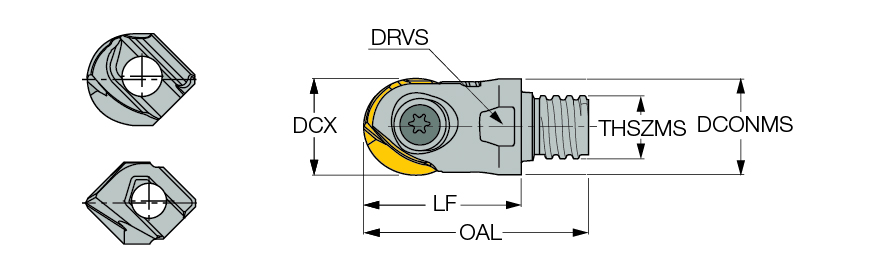

| Cutting Diameter (DC/DCX) | 25 mm | Connection Thread Nominal Size Machine Side (THSZMS) | T15 |
| Cutting Diameter (DC) | 25 mm | Drive Size (DRVS) | 20 mm |
| Cutting Item Count (CICT) | 1 | Flute Count (NOF) | 0 |
| Depth of Cut Maximum (APMX) | 16.7 mm | Torque (TQ) | 12 Nxm |
| Overall Length (OAL) | 63 mm | Corner Radius (RE) | 12.5 mm |
| Ramping Angle Maximum (RMPX) | 0 Degrees | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Countersinking | Drill Mill | Profiling | Shouldering | Slanted Shoulder & Chamfer | Slotting | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 24 mm | Measurement Type | Metric |
| Master Insert Identification (MIID) | HBR D250-QF | Body Material | Steel |
| Functional Length (LF) | 46 mm | Connection Code Machine Side (CCMS) | FLEXFIT |
| Tool Type | Ball nose endmills | Unit | M |
Product Features
| Family Description | Ball nose multifunction endmills with a MULTI-MASTER threaded adaptation (BALLPLUS). Each tool can carry various milling insert geometries | FamilyName | HCM-MM |
| Remarks | The dimensions are for HBR inserts Do not apply lubricant to the MULTI-MASTER threaded connection For adaptation click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.2210
Name
Indexable End Mills
FamilyName
HCM-MM
BrandName
Iscar
