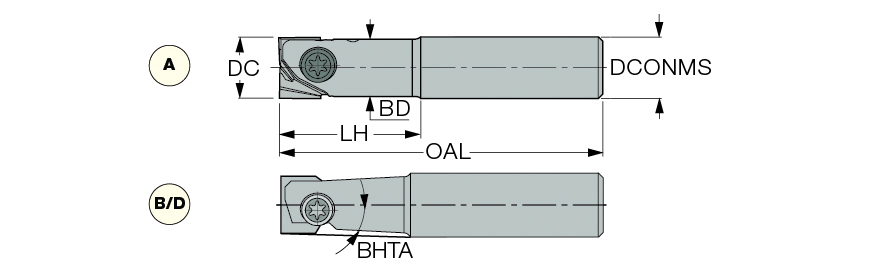

| Cutting Diameter (DC/DCX) | 16 mm | Flute Count (NOF) | 2 |
| Cutting Diameter (DC) | 16 mm | Torque (TQ) | 7.8 Nxm |
| Cutting Item Count (CICT) | 1 | Body Diameter (BD) | 14.9 mm |
| Depth of Cut Maximum (APMX) | 10.3 mm | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 130 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Shank Type | Round | Front Type | A |
| Ramping Angle Maximum (RMPX) | 0 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Drill Mill | Shouldering | Slotting | Undercutting | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Body Material | Steel |
| Master Insert Identification (MIID) | HCC D160-R0.5-QF | Connection Code Machine Side (CCMS) | Cylindrical |
| Head Length (LH) | 36 mm | Unit | M |
| Tool Type | Ball nose endmills |
Product Features
| Family Description | Multifunction endmills that can carry ball nose, 90° and toroidal inserts. | FamilyName | HCE |
| Remarks | For undercutting, use HTR inserts only The dimensions are for HCC inserts with RE=0.5 mm For adaptation, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.2950
Name

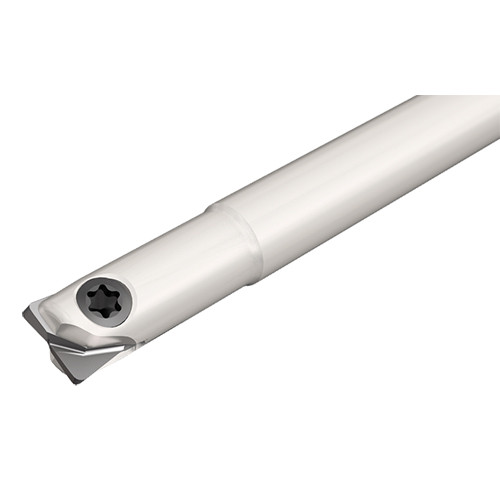

Indexable End Mills
FamilyName
HCE
BrandName
Iscar
