A04F SEXPR-03

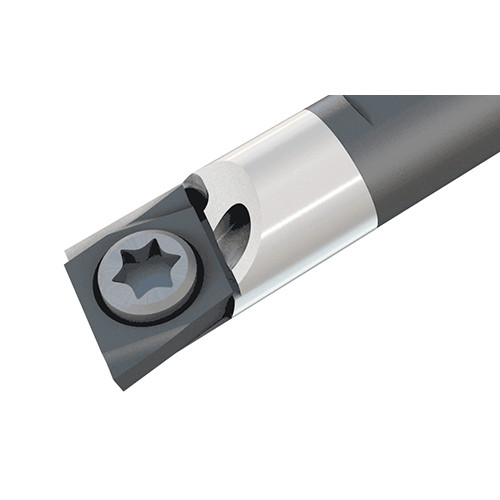

Screw lock steel and solid carbide boring bars with coolant channels, carrying 75° rhombic inserts with 11° clearance for 4.5 mm minimum bore diameter.

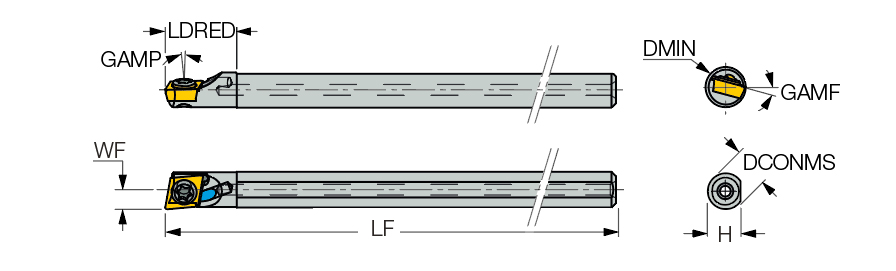

| Connection Diameter Machine Side (DCONMS) | 4 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 80 mm | Application | | Int. 75° Diamond 100° Approach | |
| Reduced Body Diameter Length (LDRED) | 8 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Height (H) | 3.8 mm | Rake Angle Radial (GAMF) | -15 Degrees |
| Functional Width (WF) | 2.3 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | EPGT03 | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 4.5 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Unit | M |
Product Features
| Family Description | Screw lock steel and solid carbide boring bars with coolant channels, carrying 75° rhombic inserts with 11° clearance for 4.5 mm minimum bore diameter. | FamilyName | A/E-SEXPR/L-03 |
| Remarks | A - steel shank with coolant hole, E - carbide shank with coolant hole | BrandName | Iscar |
| COO | Japan |
Shipping Info
Weight per item
0.0270
Name
Indexable Internal Turning Tools
FamilyName
A/E-SEXPR/L-03
BrandName
Iscar
