A10J SXFOR-06

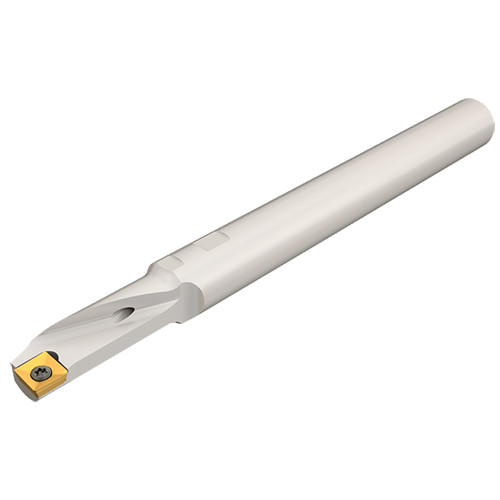

Boring bars with coolant holes carrying XOMT inserts.

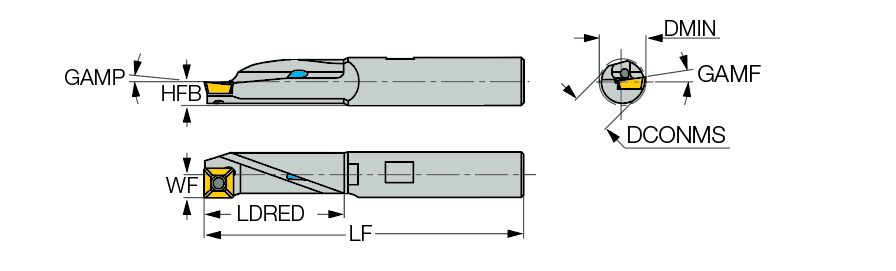

| Connection Diameter Machine Side (DCONMS) | 10 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 110 mm | Application | | Int. XOMT 88° Approach | |
| Reduced Body Diameter Length (LDRED) | 28.5 mm | Rake Angle Axial (GAMP) | 6 Degrees |
| Shank Height (H) | 4.7 mm | Rake Angle Radial (GAMF) | 1.8 Degrees |
| Functional Width (WF) | 4.9 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | XOMT 0602 | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 10 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Unit | M |
Product Features
| Family Description | Boring bars with coolant holes carrying XOMT inserts. | FamilyName | A-SXFOR/L |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0730
Name
Indexable Internal Turning Tools
FamilyName
A-SXFOR/L
BrandName
Iscar
