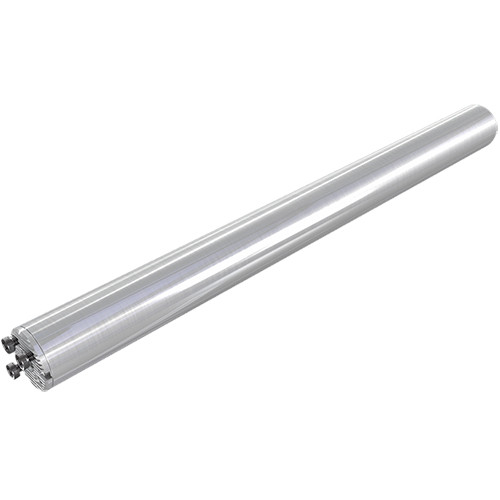

AV-D32-7D-C
Anti-Vibration bars with through coolant for interchangeable heads.

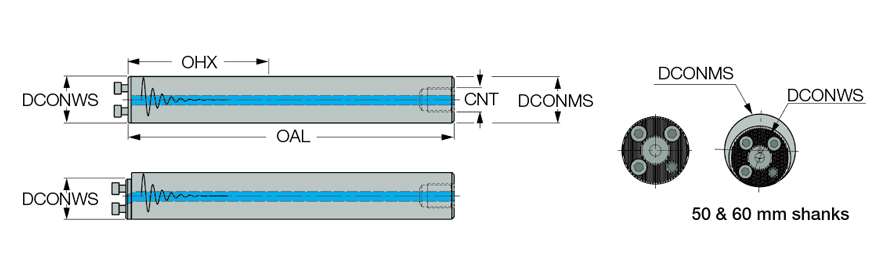

| Connection Diameter Machine Side (DCONMS) | 32 mm | Body Material | Steel |
| Overall Length (OAL) | 323 mm | Measurement Type | Metric |
| Coolant Supply Property (CSP) | Coolant Thru | Connection Code Machine Side (CCMS) | Cylindrical |
| Connection Diameter Workpiece Side (DCONWS) | 32 mm | Unit | M |
| Tool Type | Cylindrical Shanks |
Product Features
| Family Description | Anti-Vibration bars with through coolant for interchangeable heads. | FamilyName | AV-D |

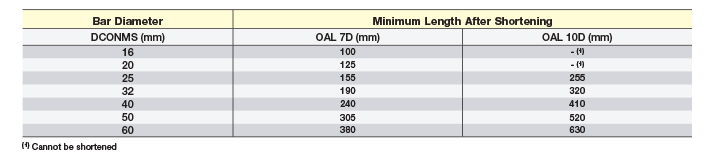

| Remarks | Only steel bars can be shortened. For details, click on More Info 12xBD and 14xBD cannot be shortened | BrandName | Iscar |
| COO | China |
Shipping Info
Weight per item
3.1000
Name
Indexable Internal Turning Tools
FamilyName
AV-D
BrandName
Iscar
