MGUHR 06-04L20

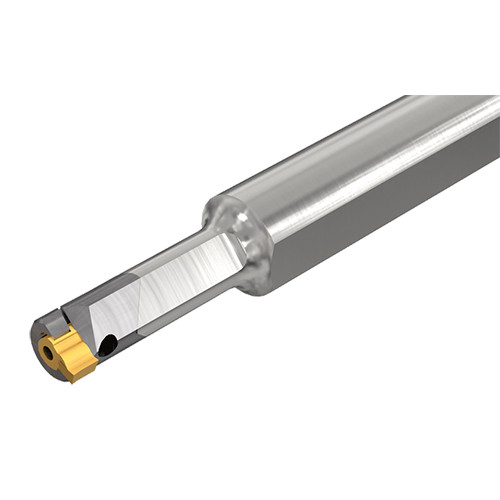

MINCHAM solid carbide bars used for internal turning and threading at 4 mm minimum bore diameter.

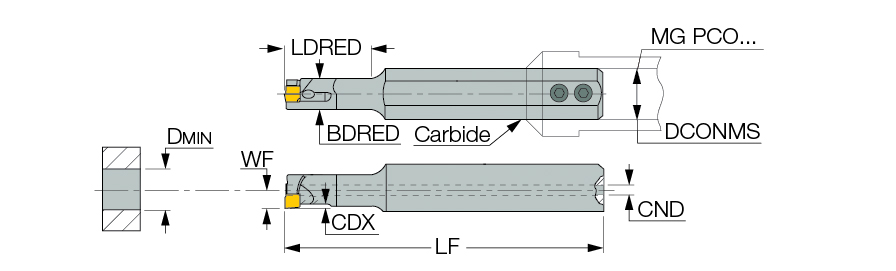

| Connection Diameter Machine Side (DCONMS) | 6 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Functional Length (LF) | 62 mm | Application | | Int. Boring and Profiling | Threading (Int.) | |
| Overall Length (OAL) | 62 mm | Connection Diameter Workpiece Side (DCONWS) | 3.45 mm |
| Reduced Body Diameter Length (LDRED) | 20 mm | Tool Type | Indexable Turn & Groov Tools |
| Functional Width (WF) | 2.17 mm | Body Material | Carbide |
| Master Insert Identification (MIID) | UMGR 4.0-0.0 | Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 4 mm | Unit | M |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | MINCHAM solid carbide bars used for internal turning and threading at 4 mm minimum bore diameter. | FamilyName | MGUHR |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0220
Name
Indexable Internal Turning Tools
FamilyName
MGUHR
BrandName
Iscar
