FRW D050A066-05-27-16

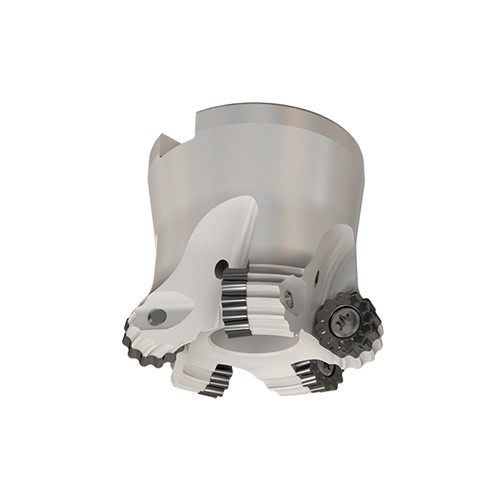

MILLSHRED - Face mills carrying round inserts with serrated cutting edges or regular round inserts. Used for rough machining applications on small dies and low power machines.

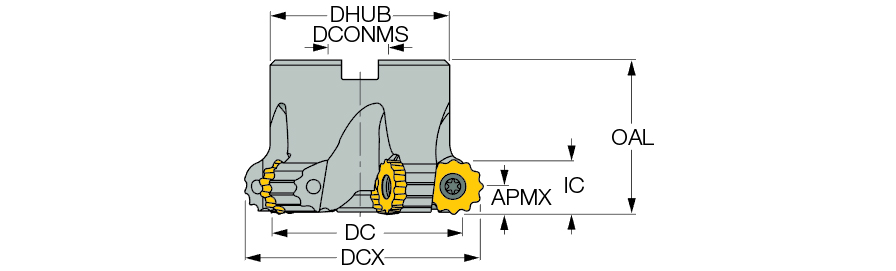

| Cutting Diameter (DC/DCX) | 66 mm | Master Insert Identification (MIID) | RCMT 1607MO |
| Cutting Diameter (DC) | 50 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 66 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 5 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 8 mm | Application | | Facing | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | |
| Connection Diameter Machine Side (DCONMS) | 27 mm | Measurement Type | Metric |
| Overall Length (OAL) | 50 mm | Tool Type | Round corner cutters |
| Hub Diameter (DHUB) | 50 mm | Unit | M |
| Arbor Style | A |
Product Features
| Family Description | MILLSHRED - Face mills carrying round inserts with serrated cutting edges or regular round inserts. Used for rough machining applications on small dies and low power machines. | FamilyName | FRW |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.6550
Name
Indexable Face Mills
FamilyName
FRW
BrandName
Iscar
