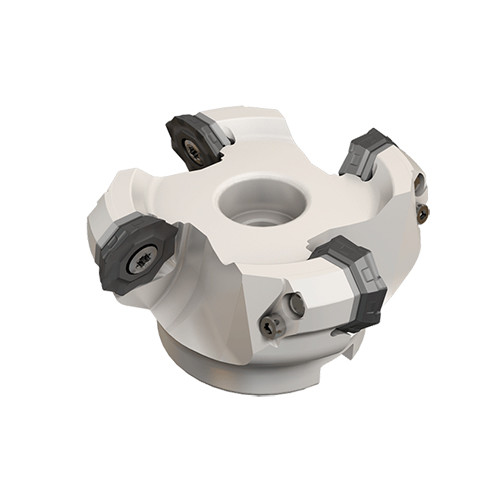

HOF D063-04-22-R07

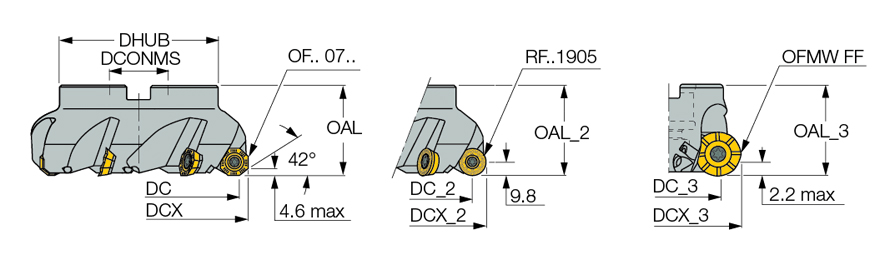

| Cutting Diameter (DC/DCX) | 75.5 mm | Master Insert Identification (MIID) | OFMT 07T3-AETN |
| Cutting Diameter (DC) | 63 mm | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 75.5 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 4 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 4.6 mm | Application | | Facing | Fast Feed Milling | Helical Interpolation | Profiling | Rampdown | Slanted Shoulder & Chamfer | |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Measurement Type | Metric |
| Overall Length (OAL) | 40 mm | Tool Cutting Edge Angle (KAPR) | 42 Degrees |
| Hub Diameter (DHUB) | 48 mm | Tool Type | 45° Facemills |
| Arbor Style | A | Unit | M |
Product Features
| Family Description | Face mills carrying octagonal, round and fast feed segmented inserts | FamilyName | HOF-R07 |
| Remarks | Helical interpolation is applicable up to and including 100 mm diameter. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.6510
Name
Indexable Face Mills
FamilyName
HOF-R07
BrandName
Iscar
LocalField3
8466100130
