TRIB 50-32W-6Z

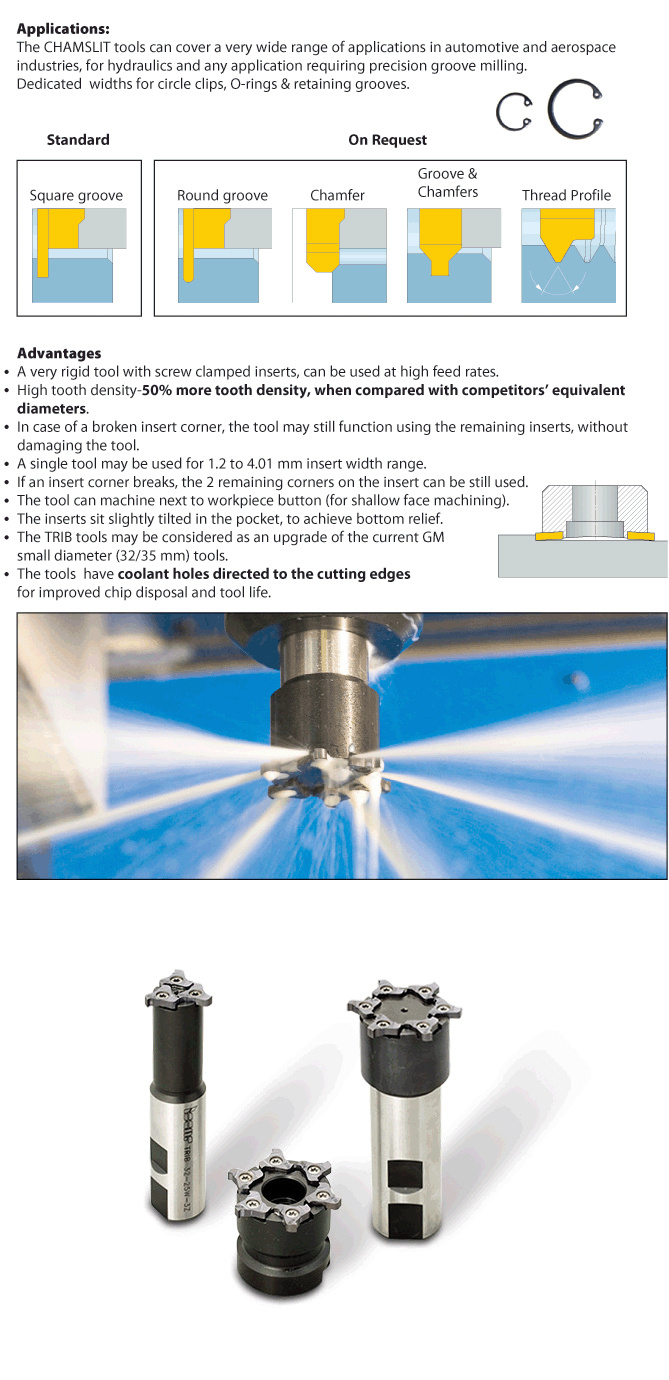

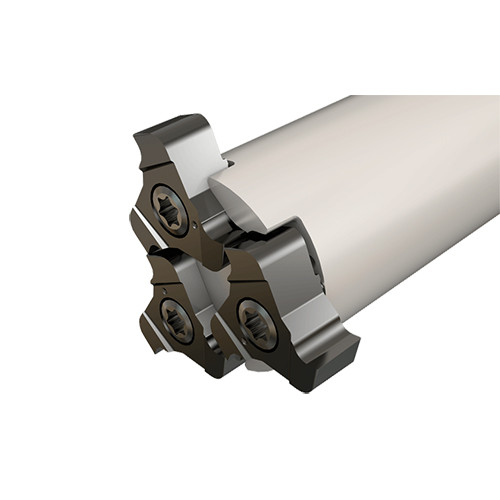

Slitting shanks carrying triple-edged precision ground inserts.

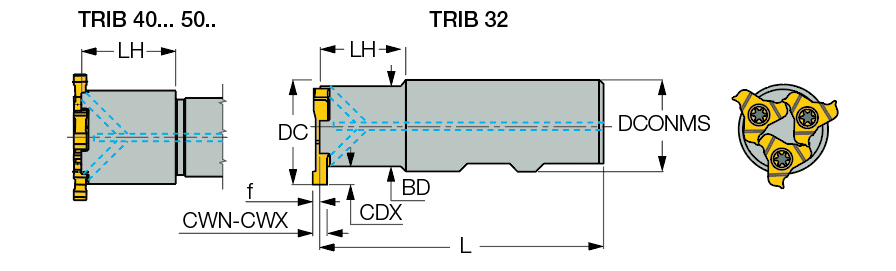

| Cutting Diameter (DC) | 50 mm | Tool Type | Double-sided slotting cutters |
| Flute Count (NOF) | 6 | Body Material | Steel |
| Peripheral Effective Cutting Edge Count (ZEFP) | 6 | Functional Length (LF) | 76.43 mm |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Master Insert Identification (MIID) | TRI 16RK-4.0-0.2 |
| Overall Length (OAL) | 110 mm | Connection Code Machine Side (CCMS) | Weldon |
| Shank Type | Weldon | Unit | M |
| Application | | Bottom Shouldering | Internal Groove Milling | Shouldering | Side Slotting | | Neck Diameter (DN) | 39.7 mm |
| Measurement Type | Metric |
Product Features
| Family Description | Slitting shanks carrying triple-edged precision ground inserts. | FamilyName | TRIB |
| Remarks | W, Tmax, f, Refer to insert data For inserts with W=4.01-6.50 mm, order tools with -B suffix (deeper pockets). For example: TRIB 50-32W-6Z-B For adaptation click on More Info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.8890
Name
Disc w/Shank Indexable Slotting Cutters
FamilyName
TRIB
BrandName
Iscar
